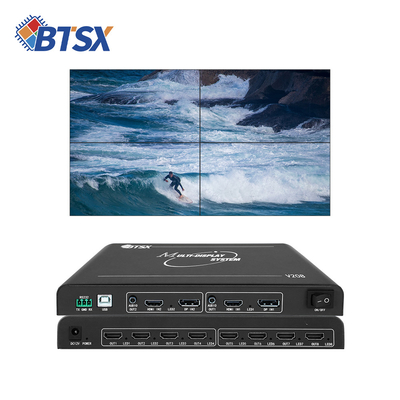

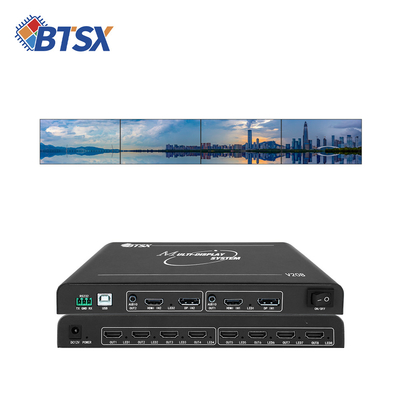

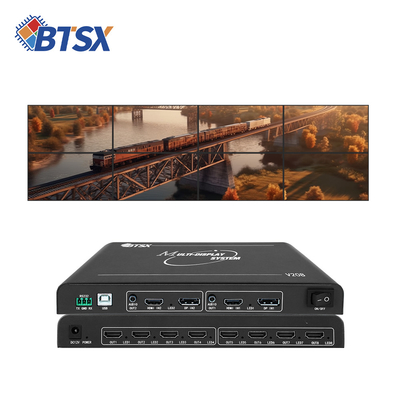

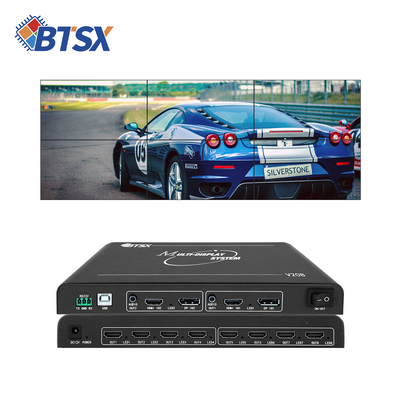

BIT-MSE-8K-208HD 1X1 1X2 1X3 1X6 2X1 2X2 2X4 Video Switcher 2 In 8 Out Video Wall Controller

BIT-MSE-8K-208HD 1X1 1X2 1X3 1X6 2X1 2X2 2X4 Video Switcher 2 In 8 Out Video Wall Controller
BIT-MSE-8K-208HD 1X1 1X2 1X3 1X6 2X1 2X2 2X4 Video Switcher 2 In 8 Out Video Wall Controller
BIT-MSE-8K-208HD 1X1 1X2 1X3 1X6 2X1 2X2 2X4 Video Switcher 2 In 8 Out Video Wall Controller BIT-MSE-8K-208HD 1X1 1X2 1X3 1X6 2X1 2X2 2X4 Video Switcher 2 In 8 Out Video Wall Controller BIT-MSE-8K-208HD 1X1 1X2 1X3 1X6 2X1 2X2 2X4 Video Switcher 2 In 8 Out Video Wall Controller BIT-MSE-8K-208HD 1X1 1X2 1X3 1X6 2X1 2X2 2X4 Video Switcher 2 In 8 Out Video Wall Controller BIT-MSE-8K-208HD 1X1 1X2 1X3 1X6 2X1 2X2 2X4 Video Switcher 2 In 8 Out Video Wall Controller BIT-MSE-8K-208HD 1X1 1X2 1X3 1X6 2X1 2X2 2X4 Video Switcher 2 In 8 Out Video Wall Controller

Large Image :  BIT-MSE-8K-208HD 1X1 1X2 1X3 1X6 2X1 2X2 2X4 Video Switcher 2 In 8 Out Video Wall Controller

Product Details:
Place of Origin: China
Brand Name: Bitvisus
Certification: CE,HDMI,HDCP,RoHS,FCC
Model Number: BIT-MSE-8K-208HD
Payment & Shipping Terms:
Minimum Order Quantity: 1Piece
Price: Contact Us
Packaging Details: Packing box
Delivery Time: 7-30day
Payment Terms: T/T, PayPal
Supply Ability: 1000Piece/30day

BIT-MSE-8K-208HD 1X1 1X2 1X3 1X6 2X1 2X2 2X4 Video Switcher 2 In 8 Out Video Wall Controller

Description
Brand Name: Bitvisus Model Number: BIT-MSE-8K-208HD
Place Of Origin: Guangdong, China Power: DC12V2A
Function: Video Splicer Output: 233mm*108mm*28.7mm
Warranty: 8Output Input Interface: 2CH HDMI 2.0/DP 1.2 (either One)
Package: Equipment *1, Power *1, Certificate *1, Warranty Card *1

BIT-MSE-8K-208HD 1X1 1X2 1X3 1X6 2X1 2X2 2X4 Video Switcher 2 In 8 Out Video Wall Controller



BIT-MSE-8K-208HD is an industrial-grade high-performance 8K multi-screen splitter designed specifically for multi-desktop operation and multi-channel projection fusion. Equipped with HDMI/DP input and HDMI output interfaces, it enables seamless splitting of video signals to up to 8 displays simultaneously. With support for resolutions up to 7680*2400@60Hz, it offers ultra-high-definition visuals perfect for demanding applications.



BIT-MSE-8K-208HD 1X1 1X2 1X3 1X6 2X1 2X2 2X4 Video Switcher 2 In 8 Out Video Wall Controller 0





BIT-MSE-8K-208HD 1X1 1X2 1X3 1X6 2X1 2X2 2X4 Video Switcher 2 In 8 Out Video Wall Controller



  1. High-Resolution Support: Up to 7680*2400@60Hz resolution ensures crystal-clear visuals for all your displays.
  2. Versatile Splitting Modes: Supports various splitting modes including 1x1, 1x2, 1x3, 1x4, 1x6, 1x8, 2x1, 2x2, 2x3, and 2x4 for ultimate flexibility.
  3. Real-Time Processing: Utilizes a 45nm process high-end programmable FPGA chip for ultra-fast, lag-free processing.
  4. Industrial-Grade Design: Thickened 4-layer PCB board and 16KV super anti-static ability guarantee long-term stability and reliability.
  5. Low Power Consumption: Energy-efficient design with internal conduction cooling, eliminating the need for external cooling measures.
  6. Custom Resolution Support: Allows for custom resolution setup to meet specific display requirements.
  7. Audio-Video Synchronization: Ensures both audio and video signals are transmitted in perfect sync.

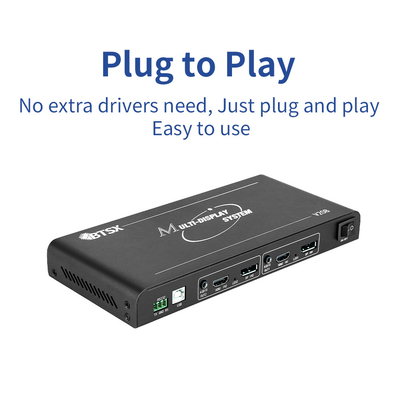

  8. Ease of Use: Simple connection and setup process, suitable for both professionals and enthusiasts.



BIT-MSE-8K-208HD 1X1 1X2 1X3 1X6 2X1 2X2 2X4 Video Switcher 2 In 8 Out Video Wall Controller





Suitable for ultra - high resolution desktop applications, super - large screen walls, command and control systems, multi - screen video surveillance, engineering display applications, multi - channel projection, virtual reality, surround - screen theater, large - scale advertising walls, LCD/LED multi - screens, etc.



BIT-MSE-8K-208HD 1X1 1X2 1X3 1X6 2X1 2X2 2X4 Video Switcher 2 In 8 Out Video Wall Controller 1



BIT-MSE-8K-208HD 1X1 1X2 1X3 1X6 2X1 2X2 2X4 Video Switcher 2 In 8 Out Video Wall Controller





Diethylammonium chloride BIT-MSE-8K-208HD
importation input interface 2CH HDMI 2.0/DP 1.2 (either one)
HDCP function Supports HDCP 2.2
transmission distance ≤5 meters
Input Maximum Pixel Clock 600MHz
Input single port resolution

7680x1080@60Hz/7680x1200@60Hz

(resolution within 4Kx2K@60Hz bandwidth)

Input color format RGB888, 24bit
exports output interface 8CH HDMI 1.3
transmission distance ≤15 meters
Output Maximum Pixel Clock 165M
Output single port resolution

1920x1200@60Hz

1280x800@60Hz

(backward compatible, customizable)

Output Color Format RGB888, 24bit
sound frequency audio output 3.5mm audio jack (audio split)
norm electric power source DC 12V/2A
Maximum power consumption 22W
Storage/working temperature -10 to 50ºC/0 to 50ºC
Product Size L290mm*W143mm*H22mm
Packing weight (net weight of equipment) 1.3KG
List of accessories 12V/2A Power Supply*1, HDMI/DP Cable*2, Certificate of Conformity*1, Warranty Card*1
(sth. or sb) else after-sales service Warranty 3 years
