Highlight:
LCD Video Mixer Switcher
, 5x4 Video Mixer Switcher
, 4k HDMI Video Wall Controller
LCD 3x5 5x4 video mixer 4k hdmi video wall controller video wall processor

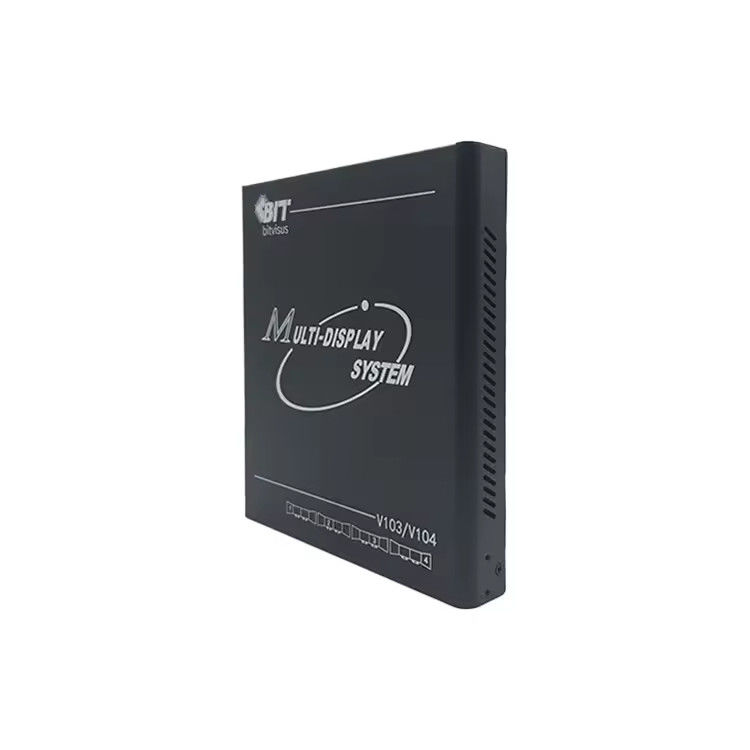

The BIT-MSE-4K60-104HD is an industrial-grade, high-performance processor. Designed for multi-desktop operation and multi-channel projection, it features HDMI/DP input and HDMI output. Boasting super high resolution, it supports 1xN without stretching or deformation. EDID can be modified via USB. It employs a 45nm FPGA chip, presenting industrial design and remarkable stability. Additionally, it supports parallel operation and has low power consumption with conductive heat dissipation.
LCD 3x5 5x4 video mixer 4k hdmi video wall controller video wall processor specificities
1. BIT-MSE-4K60-104HD creative ultra-clear processor is anindustrial-grade high-performance product speciallydeveloped for the integration of multi-desktop operation andmulti-channel projection. It adopts HDMI/DP input interfaceand HDMI output
2. Super high resolution, the output supports a maximumresolution of 4x1920x1200@60Hz, which is backwardcompatible with low resolution.
3. Support 1xN, point to point, no stretching, no deformation, and a wider field of vision.
4. Support to modify the EDID through the USB interface.
5. Adopt high-end programmable FPGA chip with 45nmtechnology, full hardware real-time processing architecture, ultra fast processing speed without delay.
6. Industrial-grade design, thickened 4-layer PCB board, 16KVsuper strong anti-static ability, super product stability.
7. Support parallel operation to meet the real-time displayrequirements of large screen.
8. Low power consumption, energy saving and environmentalprotection design. Conductive heat dissipation is used insidewithout any external heat dissipation measures.
LCD 3x5 5x4 video mixer 4k hdmi video wall controller video wall processor appliance
Ultra-high-resolution desktop applications, large-screen walls for diverse uses such as in command and dispatch systems, multi-screen video surveillance, engineering display applications. Also applicable to multi-channel projection, VR, ring screen theaters, large advertising walls, and LCD/LED multi-screen setups.
LCD 3x5 5x4 video mixer 4k hdmi video wall controller video wall processor Specification
| Product name |
BIT-MSE-4K60-104HD |
| Input Max. Pixel FPS |
600MHz |
| Output Max. Pixel FPS |
330MHz |
| Input type |
HDMI or DP (choose one, HDMI priority) |
| Output type |
4个HDMI |
| 3 screens support typical resolution |
3x1920x1200@60Hz 3x1920x1080@60Hz
3x1280x800@60Hz 3x1024x768@60Hz |
| 4 screens support typical resolution |
4x1920x1200@60Hz 4x1920x1080@60Hz
4x1280x800@60Hz 4x1024x768@60Hz |
| Product factory default resolution |
3840x2160@60Hz |
| 1x3 Max supported resolution |
5760x1200@60Hz |
| 1x4 Max supported resolution |
7680x1200@60Hz |
| Output distance |
15 meters |
| power supply |
12V@2A AC-DC |
| Warranty |
One year |
