4K 2x3 4x4 Multi View Hdmi Matrix 16x16 1x4 2x4 HDMI Video Wall Controller
4K 2x3 4x4 Multi View Hdmi Matrix 16x16 1x4 2x4 HDMI Video Wall Controller
Basic Properties
Country Of Origin
China
Brand Name
Bitvisus
Certificate
CE,HDMI,HDCP,RoHS,FCC
PRODUCT MODEL
BIT-MSE-4K60-104HD
Trading Properties
MOQ
1Piece
Unit Price
Contact Us
Payment Method
Paypal, T/T,
Supply Capacity
1000Piece/30day
Product Summary
High quality 2x3 4x4 4K 16x16 1x4 2x4 HDMI Video Wall Controller KTV Xmas Party Wedding The BIT-MSE-4K60-104HD stands out as an industrial-grade, high-performance processor. This processor is specifically designed for multi-desktop and multi-channel projection. It features HDMI/DP input and HDMI ...
Product Details
Highlight:
4K 4x4 Multi View Hdmi Matrix
,1x4 HDMI Video Wall Controller
,2x4 HDMI Video Wall Controller
Model Number:
BIT-MSE-4K60-104HD
Place Of Origin:
Guangdong, China
Brand Name:
Bitvisus
Keyword:
4k60 Video Wall Controller
Keyword 1:
3x4 Video Wall Controller
Usage:
KTV Xmas Party Wedding
Material:
Steel
Control:
PC Control
Power Supply:
12V@2A AC-DC
Warranty:
1 Year
Product Description
High quality 2x3 4x4 4K 16x16 1x4 2x4 HDMI Video Wall Controller KTV Xmas Party Wedding

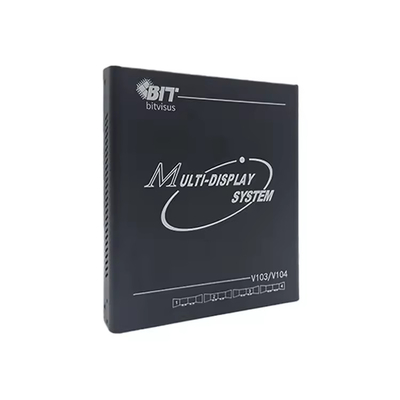

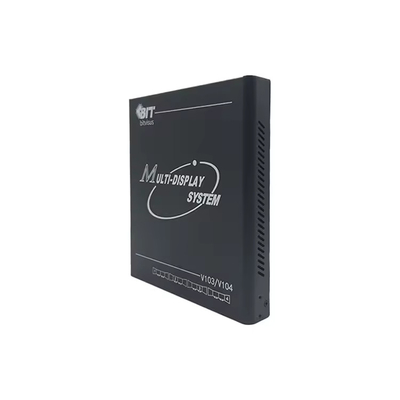

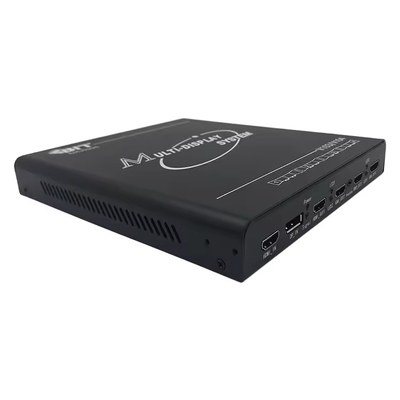

The BIT-MSE-4K60-104HD stands out as an industrial-grade, high-performance processor. This processor is specifically designed for multi-desktop and multi-channel projection. It features HDMI/DP input and HDMI output for versatile connectivity.
One of its key advantages is its super high resolution, ensuring sharp and clear visuals. It supports 1xN configuration without stretching, maintaining image integrity. The ability to modify EDID via USB offers flexibility in adapting to different display setups.
Powered by a 45nm FPGA chip, it combines industrial design and stability, making it reliable for demanding applications. It also supports parallel operation, enhancing its functionality. Additionally, with low power consumption and conductive heat dissipation, it is both energy-efficient and capable of operating in various environments.
One of its key advantages is its super high resolution, ensuring sharp and clear visuals. It supports 1xN configuration without stretching, maintaining image integrity. The ability to modify EDID via USB offers flexibility in adapting to different display setups.
Powered by a 45nm FPGA chip, it combines industrial design and stability, making it reliable for demanding applications. It also supports parallel operation, enhancing its functionality. Additionally, with low power consumption and conductive heat dissipation, it is both energy-efficient and capable of operating in various environments.
High quality 2x3 4x4 4K 16x16 1x4 2x4 HDMI Video Wall Controller KTV Xmas Party Wedding specificities
- 1. BIT-MSE-4K60-104HD creative ultra-clear processor is anindustrial-grade high-performance product speciallydeveloped for the integration of multi-desktop operation andmulti-channel projection. It adopts HDMI/DP input interfaceand HDMI output
- 2. Super high resolution, the output supports a maximumresolution of 4x1920x1200@60Hz, which is backwardcompatible with low resolution.
- 3. Support 1xN, point to point, no stretching, no deformation, and a wider field of vision.

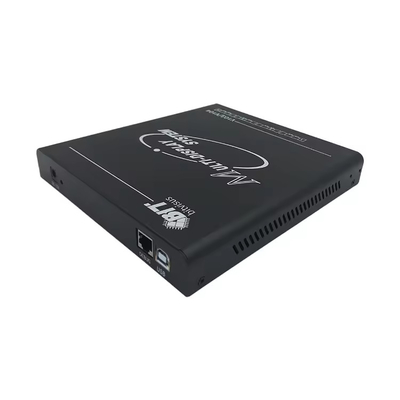

- 4. Support to modify the EDID through the USB interface.
- 5. Adopt high-end programmable FPGA chip with 45nmtechnology, full hardware real-time processing architecture, ultra fast processing speed without delay.
- 6. Industrial-grade design, thickened 4-layer PCB board, 16KVsuper strong anti-static ability, super product stability.
- 7. Support parallel operation to meet the real-time displayrequirements of large screen.
- 8. Low power consumption, energy saving and environmentalprotection design. Conductive heat dissipation is used insidewithout any external heat dissipation measures.
High quality 2x3 4x4 4K 16x16 1x4 2x4 HDMI Video Wall Controller KTV Xmas Party Wedding appliance
Ultra-high-resolution desktop applications, large screen walls, command and dispatch systems, multi-screen video surveillance, engineering display applications, multi-channelprojection, VR, ring screen theaters, large advertising walls, LCD / LED multi-screen, etc.
High quality 2x3 4x4 4K 16x16 1x4 2x4 HDMI Video Wall Controller KTV Xmas Party Wedding Specification
| Product name | BIT-MSE-4K60-104HD |
| Input Max. Pixel FPS | 600MHz |
| Output Max. Pixel FPS | 330MHz |

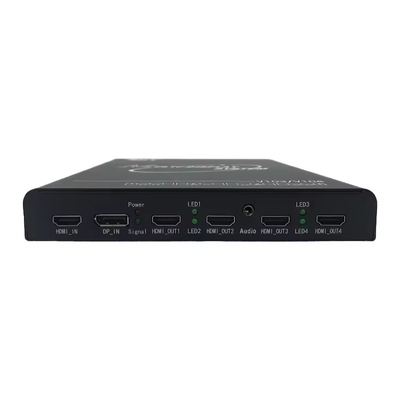

| Input type | HDMI or DP (choose one, HDMI priority) |
| Output type | 4个HDMI |
| 3 screens support typical resolution | 3x1920x1200@60Hz 3x1920x1080@60Hz 3x1280x800@60Hz 3x1024x768@60Hz |
| 4 screens support typical resolution | 4x1920x1200@60Hz 4x1920x1080@60Hz 4x1280x800@60Hz 4x1024x768@60Hz |
| Product factory default resolution | 3840x2160@60Hz |
| 1x3 Max supported resolution | 5760x1200@60Hz |
| 1x4 Max supported resolution | 7680x1200@60Hz |
| Output distance | 15 meters |
| power supply | 12V@2A AC-DC |
| Warranty | One year |
