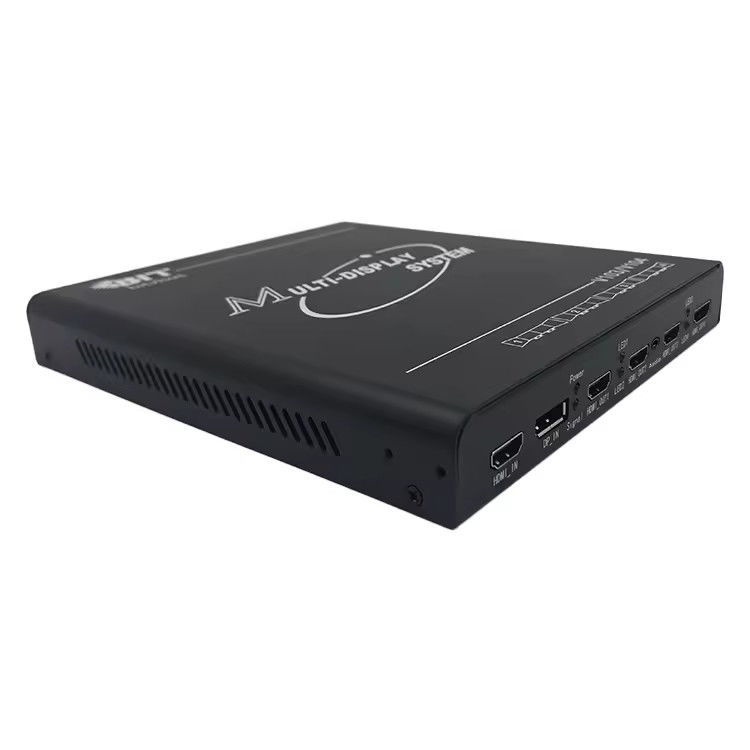

Industrial Grade 2x3 4x4 HDMI Matrix Switcher For Multi Channel Projection
Industrial Grade 2x3 4x4 HDMI Matrix Switcher For Multi Channel Projection
Basic Properties
Country Of Origin
China
Brand Name
Bitvisus
Certificate
CE,HDMI,HDCP,RoHS,FCC
PRODUCT MODEL
BIT-MSE-4K60-104HD
Trading Properties
MOQ
1Piece
Unit Price
Contact Us
Payment Method
Paypal, T/T,
Supply Capacity
1000Piece/30day
Product Summary
Industrial-Grade Bitvisus 2x3 4x4 HDMI Matrix Switcher for Multi-Channel Projection The BIT-MSE-4K60-104HD distinguishes itself as an industrial-grade, high-performance processor. Specifically crafted for multi-desktop and multi-channel projection, it boasts HDMI/DP input and HDMI output for ...
Product Details
Highlight:
Industrial HDMI Matrix Switcher
,4x4 HDMI Matrix Switcher
Brand Name:
Bitvisus
Model Number:
BIT-MSE-4K60-104HD
Input_Interface:
HDMI/DP
Output_Interface:
HDMI
Max_Output_Resolution:
4x1920x1200@60Hz
Backward_Compatibility::
Compatible With Low Resolution
Support_1XN:
Yes
No_Stretching_Deformation:
Yes
Parallel_Operation:
Supported
Power Supply:
12V@2A AC-DC
Product Description
Industrial-Grade Bitvisus 2x3 4x4 HDMI Matrix Switcher for Multi-Channel Projection
The BIT-MSE-4K60-104HD distinguishes itself as an industrial-grade, high-performance processor. Specifically crafted for multi-desktop and multi-channel projection, it boasts HDMI/DP input and HDMI output for versatile connectivity.
One of its notable advantages is its super high resolution, guaranteeing sharp and clear visuals. It supports the 1xN configuration without any stretching, preserving the integrity of the image. The capability to modify EDID via USB provides flexibility in adapting to different display setups.
Powered by a 45nm FPGA chip, it combines industrial design with stability, making it reliable for demanding applications. Furthermore, it supports parallel operation, enhancing its functionality. Additionally, with low power consumption and conductive heat dissipation, it is not only energy-efficient but also capable of operating in a variety of environments.
One of its notable advantages is its super high resolution, guaranteeing sharp and clear visuals. It supports the 1xN configuration without any stretching, preserving the integrity of the image. The capability to modify EDID via USB provides flexibility in adapting to different display setups.
Powered by a 45nm FPGA chip, it combines industrial design with stability, making it reliable for demanding applications. Furthermore, it supports parallel operation, enhancing its functionality. Additionally, with low power consumption and conductive heat dissipation, it is not only energy-efficient but also capable of operating in a variety of environments.
Industrial-Grade Bitvisus 2x3 4x4 HDMI Matrix Switcher for Multi-Channel Projection specificities
- The BIT-MSE-4K60-104HD is a high-performance, industrial-grade creative ultra-clear processor specifically designed for multi-desktop operation and multi-channel projection integration. It features HDMI/DP input interfaces and HDMI output.
- With super high resolution, this processor supports a maximum output of 4x1920x1200 at 60Hz, while maintaining backward compatibility with lower resolutions.
- It supports 1xN point-to-point connections, ensuring no stretching or deformation, and offering an expanded field of vision.
- EDID modifications can be made easily via the USB interface.
- Utilizing a high-end programmable FPGA chip with 45nm technology, it provides a full hardware real-time processing architecture, delivering ultra-fast processing speeds with zero latency.
- Designed for industrial use, it features a thickened 4-layer PCB and boasts a remarkable 16KV anti-static capability, ensuring exceptional product stability.
- The processor supports parallel operations to meet real-time display requirements for large screens.
- With low power consumption, it incorporates an energy-saving and environmentally friendly design, utilizing internal conductive heat dissipation without the need for external cooling measures.
Industrial-Grade Bitvisus 2x3 4x4 HDMI Matrix Switcher for Multi-Channel Projection appliance
Ultra-high-resolution desktop applications, large screen walls, command and dispatch systems, multi-screen video surveillance, engineering display applications, multi-channelprojection, VR, ring screen theaters, large advertising walls, LCD / LED multi-screen, etc.
Industrial-Grade Bitvisus 2x3 4x4 HDMI Matrix Switcher for Multi-Channel Projection Specification
| Product name | BIT-MSE-4K60-104HD |
| Input Max. Pixel FPS | 600MHz |
| Output Max. Pixel FPS | 330MHz |
| Input type | HDMI or DP (choose one, HDMI priority) |
| Output type | 4个HDMI |
| 3 screens support typical resolution | 3x1920x1200@60Hz 3x1920x1080@60Hz 3x1280x800@60Hz 3x1024x768@60Hz |
| 4 screens support typical resolution | 4x1920x1200@60Hz 4x1920x1080@60Hz 4x1280x800@60Hz 4x1024x768@60Hz |
| Product factory default resolution | 3840x2160@60Hz |
| 1x3 Max supported resolution | 5760x1200@60Hz |
| 1x4 Max supported resolution | 7680x1200@60Hz |
| Output distance | 15 meters |
| power supply | 12V@2A AC-DC |
| Warranty | One year |
