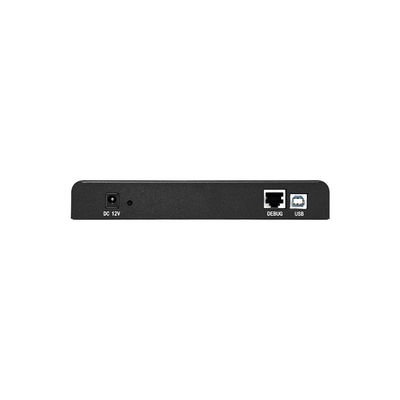

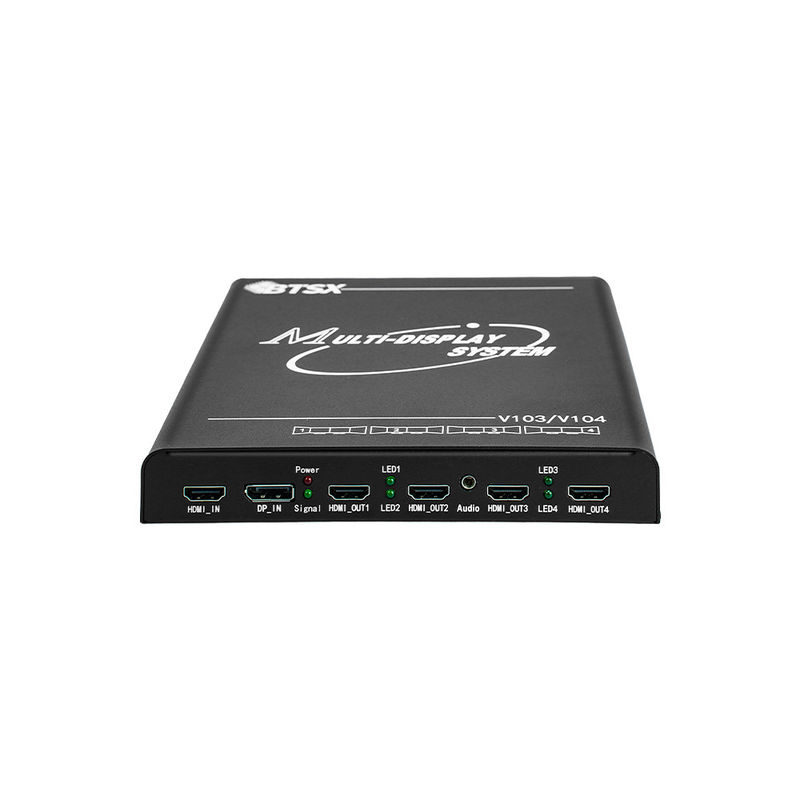

Equal Proportion HDMI Matrix Switcher 4K Video Wall Controller 1X4 1X2 For KTV Room

BIT-MSE-4K60-104PRO Equal Proportion Videowall Controller 1X2 4K 1X4 4K Wall Controller

BIT-MSE-4K60-104PRO Equal Proportion Videowall Controller 1X2 4K 1X4 4K Wall Controller specificities

Super high resolution, the output supports a maximum resolution of 7680x1200 @ 30Hz / 1920x4800 @ 30Hz, which is backward compatible with low resolution.
Support 1xN, Nx1, MxN and 90 ° rotation ratio stitching, without stretching, deformation, and wider field of vision.
Adopt high-end programmable FPGA chip with 45nm technology, full hardware real-time processing architecture, ultra fast processing speed without delay.
Industrial-grade design, thickened 6-layer PCB board, 16KV super strong anti-static ability, super product stability.
Support parallel operation to meet the real-time display requirements of large screen.
Low power consumption, energy saving and environmental protection design. Conductive heat dissipation is used inside without any external heat dissipation measures.

BIT-MSE-4K60-104PRO Equal Proportion Videowall Controller 1X2 4K 1X4 4K Wall Controller appliance

1. Ultra-High-Resolution Desktop Applications: Perfect for professionals requiring crisp, detailed visuals on expansive workspaces, enabling seamless multitasking and enhanced productivity.

2. Large Screen Walls: Ideal for showcasing immersive content in airports, convention centers, or corporate lobbies, where the ability to blend multiple projections seamlessly is crucial.

3. Command and Dispatch Systems: Enhances decision-making processes by providing operators with a comprehensive, real-time view of multiple sources and screens, fostering efficient communication and rapid response.

4. Multi-Screen Video Surveillance: Facilitates centralized monitoring of vast areas, with seamless integration of multiple camera feeds across multiple screens, ensuring no blind spots and swift incident response.

5. Engineering Display Applications: Supports complex design and simulation workflows, enabling engineers to visualize intricate projects on expansive displays, fostering collaboration and innovation.

6. Multi-Channel Projection: Perfect for events, exhibitions, or themed attractions, delivering stunning visual experiences by fusing multiple projections into a single, seamless image.

7. VR & Immersive Environments: Enhances virtual reality and 360° viewing experiences, enabling users to navigate intricate virtual landscapes with clarity and precision.

8. Ring Screen Theaters: Provides the technology backbone for immersive, circular theaters, where projection fusion ensures a fully enclosed, panoramic viewing experience.

9. Large Advertising Walls: Captivates audiences with dynamic, high-impact advertising campaigns, seamlessly spanning across massive LED or LCD displays.

10. LCD/LED Multi-Screen Configurations: Enables the creation of custom, multi-screen setups for retail stores, museums, or any setting requiring eye-catching displays and interactivity.

BIT-MSE-4K60-104PRO Equal Proportion Videowall Controller 1X2 4K 1X4 4K Wall Controller Specification

Product name	BIT-MSE-4K60-104PRO
Input Max. Pixel FPS	600MHz
Output Max. Pixel FPS	330MHz
Input type	HDMI or DP (choose one, HDMI priority)
Output type	4 HDMI
3 screens support typical resolution	3x1920x1200@60Hz 3x1920x1080@60Hz 3x1280x800@60Hz 3x1024x768@60Hz
4 screens support typical resolution	4x1920x1200@60Hz 4x1920x1080@60Hz 4x1280x800@60Hz 4x1024x768@60Hz
Product factory default resolution	3840x2160@60Hz
2x2 Max supported resolution	3840x2400@60Hz
3x1/1x3Max supported resolution	1920x3600@60Hz/5760x1200@60Hz
4x1/1x4Max supported resolution	1920x4800@60Hz/7680x1200@60Hz
Output distance	15 meters
power supply	12V@2A AC-DC
Warranty	One year
