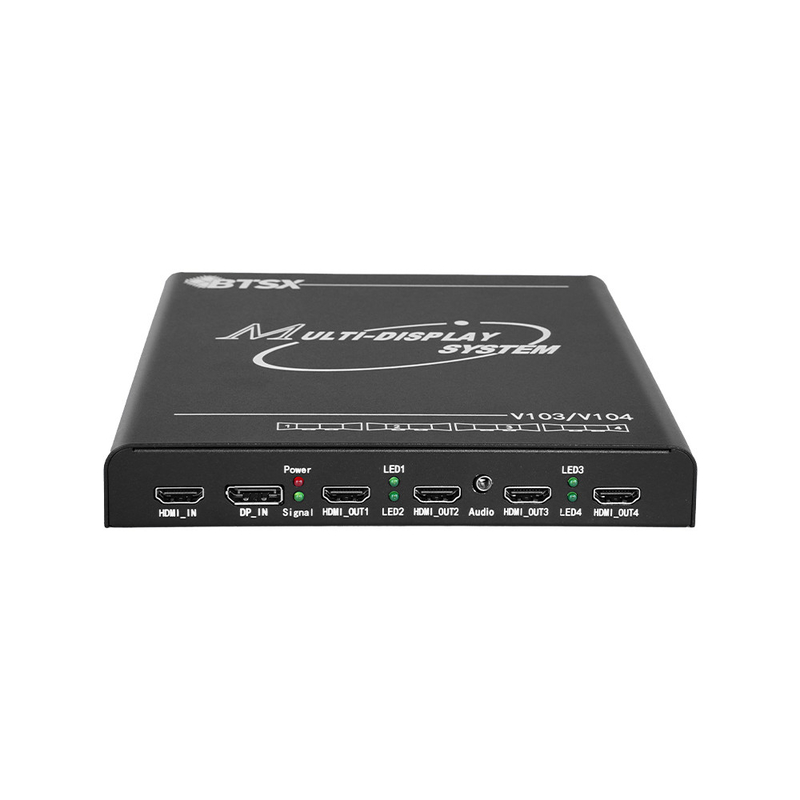

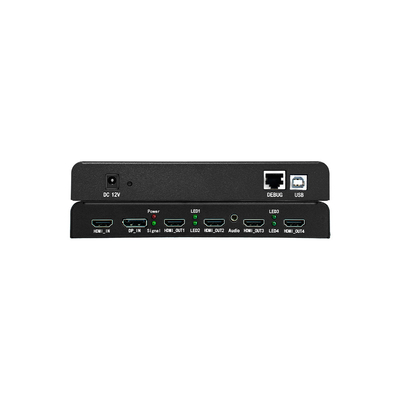

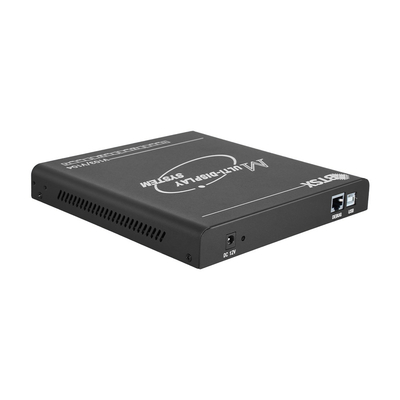

1X4 HDMI Matrix Switcher
, HDMI Matrix Switcher Parallel Operation
Stable Quality Support Parallel Operation Projector Blending 4X4 1X4 Video Wall Controller
This is an industrial-grade high-performance product specially developed for the needs of multi-desktop operation and multi-channel projection fusion. It uses HDMI input interface and DVI output.
Stable Quality Support Parallel Operation Projector Blending 4X4 1X4 Video Wall Controller specificities
Experience unparalleled visual clarity with super high resolution, supporting up to 7680x1200 @ 30Hz or 1920x4800 @ 30Hz, while ensuring backward compatibility with lower resolutions.
Seamlessly blend multiple screens using 1xN, Nx1, MxN configurations, and 90° rotation ratio stitching, delivering an uninterrupted, distortion-free visual experience with an expanded field of view.
Powered by a cutting-edge 45nm FPGA chip, our full hardware real-time processing architecture ensures ultra-fast processing speeds without lag, ensuring a smooth and responsive display.
Designed for rugged industrial environments, our product boasts a thickened 6-layer PCB board, 16KV electrostatic discharge protection, and exceptional stability, ensuring reliable performance under demanding conditions.
Meet the demands of large-scale, real-time displays with parallel operation support, ensuring seamless integration and scalability.
Embracing eco-friendly design, our product features low power consumption, energy efficiency, and efficient conductive heat dissipation, eliminating the need for external cooling measures.
Stable Quality Support Parallel Operation Projector Blending 4X4 1X4 Video Wall Controller appliance
Common application includesUltra-high-resolution desktop applications, large screen walls, command and dispatch systems,multi-screen video surveillance, engineering display applications, multi-channel projection, VR, ring screen theaters, large advertising walls, LCD / LED multi-screen, etc.
Stable Quality Support Parallel Operation Projector Blending 4X4 1X4 Video Wall Controller Specification
| Product name |
BIT-MSE-4K60-104PRO |
| Input Max. Pixel FPS |
600MHz |
| Output Max. Pixel FPS |
330MHz |
| Input type |
HDMI or DP (choose one, HDMI priority) |
| Output type |
4 HDMI |
| 3 screens support typical resolution |
3x1920x1200@60Hz 3x1920x1080@60Hz
3x1280x800@60Hz 3x1024x768@60Hz |
| 4 screens support typical resolution |
4x1920x1200@60Hz 4x1920x1080@60Hz
4x1280x800@60Hz 4x1024x768@60Hz |
| Product factory default resolution |
3840x2160@60Hz |
| 2x2 Max supported resolution |
3840x2400@60Hz |
| 3x1/1x3Max supported resolution |
1920x3600@60Hz/5760x1200@60Hz |
| 4x1/1x4Max supported resolution |
1920x4800@60Hz/7680x1200@60Hz |
| Output distance |
15 meters |
| power supply |
12V@2A AC-DC |
| Warranty |
One year |
