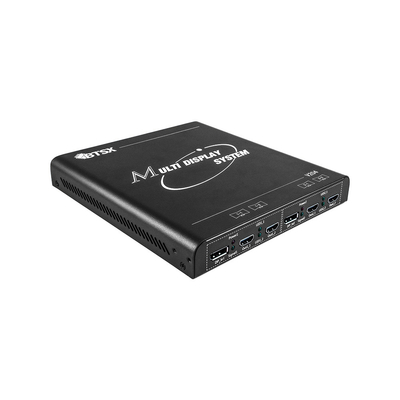

1X4 1X2 3D Dp Hdmi Video Processor 8K Multi Screen Video Controller

High Quality Displayer 1X4 1X2 3D Dp & Hdmi Video Processor 8K Multi screen expansion

High Quality Displayer 1X4 1X2 3D Dp & Hdmi Video Processor 8K Multi screen expansion specificities

Support Row 1 Column N, pixel per pixel, no stretching, no deformation, and wider field of vision.
Adopt 45nm process high-end programmable FPGA chip and all hardware real-time processing architecture, with ultra fast processing speed .
Industrial design, 16Kv super anti-static and super high stability.
Support parallel mode to ensure the real-time display demand of large screen.
Low power consumption, energy saving and environmental protection design, internal conduction heat dissipation without any external heat dissipation measures, high reliability.

High Quality Displayer 1X4 1X2 3D Dp & Hdmi Video Processor 8K Multi screen expansion appliance

Ultra high resolution desktop application, super large screen wall, command and dispatching system, multi screen video monitoring, engineering display application, multi-channel projection, virtual reality, ring screen cinema, large advertising wall, LCD / LED multi screen, etc.

High Quality Displayer 1X4 1X2 3D Dp & Hdmi Video Processor 8K Multi screen expansion Specification

Parameters	BIT-MSE-8K-204HD
Single input maximum resolution	600MHz
Single output maximum resolution	165MHz

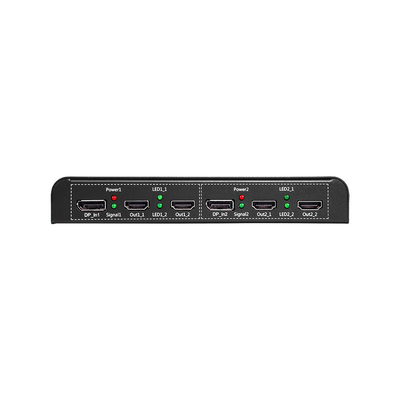

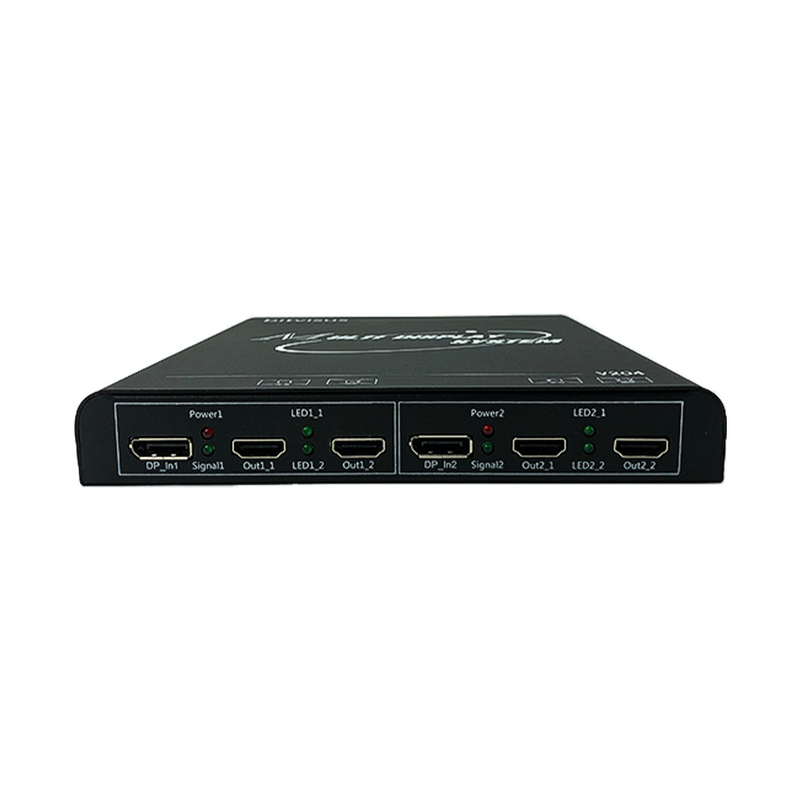

Input port	2 * DP HDCP2.2
Output port	4 *HDMI
2 screens splicing mode	2x1920x1200@60Hz 2x1920x1080@60Hz 2x1024x768@60Hz 2x1280x720@60Hz 2x3840x2160@30Hz
Default	3840x1200@60Hz
Row 1 Column 2 splicing mode	7680x2160@30Hz
Row 2 Column 2 splicing mode	7680x4320@30Hz
Output distance (Normal HDMI cable)	15 meters

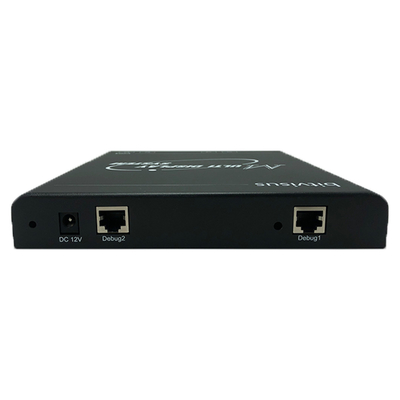

Power	12V@2A AC-DC
Warranty	1 Year
Size	186mmx204mmx29mm
