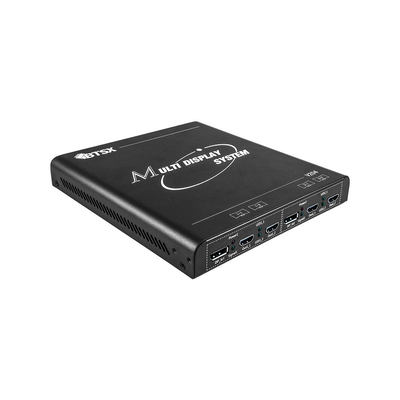

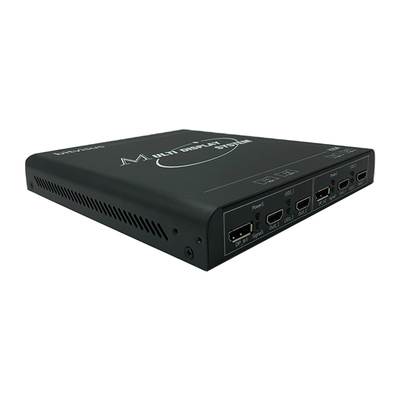

3D 2X2 8K 1x4 4K UHD LED Video Wall Controller Box BIT-MSE-8K-204HD
3D 2X2 8K 1x4 4K UHD LED Video Wall Controller Box BIT-MSE-8K-204HD
Basic Properties
Country Of Origin
China
Brand Name
Bitvisus
Certificate
CE,HDMI,HDCP,RoHS,FCC
PRODUCT MODEL
BIT-MSE-8K-204HD
Trading Properties
MOQ
1Piece
Unit Price
Contact Us
Payment Method
Paypal, T/T,
Supply Capacity
1000Piece/30day
Product Summary
BIT-MSE-8K-204HD Professional 3D 2X2 8K 1x4 4K UHD led video wall controller box Introducing the BIT-MSE-8K-204HD Creative Ultra Clear Processor - an industrial-grade, high-performance masterpiece tailored specifically for the seamless integration of multi-desktop operations and multi-channel ...
Product Details
Highlight:
LED Video Wall Controller Box
,UHD Video Wall Controller Box
Place Of Origin:
Guangdong, China
Brand Name:
Bitvisus
Model Number:
BIT-MSE-8K-204HD
Power:
12W
Frequency Range (Hz):
NA
Dimension (L X W X H):
186mm*204mm*29mm
Product Name:
Video Wall Controller
Special Feature:
HD
Color:
Black
Packing:
Standard
Product Description
BIT-MSE-8K-204HD Professional 3D 2X2 8K 1x4 4K UHD led video wall controller box
Introducing the BIT-MSE-8K-204HD Creative Ultra Clear Processor - an industrial-grade, high-performance masterpiece tailored specifically for the seamless integration of multi-desktop operations and multi-channel projection. This cutting-edge processor redefines the limits of visual clarity and versatility, enabling unparalleled experiences in a diverse range of professional applications.
BIT-MSE-8K-204HD Professional 3D 2X2 8K 1x4 4K UHD led video wall controller box specificities
- Support Row 1 Column N, pixel per pixel, no stretching, no deformation, and wider field of vision.
- Adopt 45nm process high-end programmable FPGA chip and all hardware real-time processing architecture, with ultra fast processing speed .
- Industrial design, 16Kv super anti-static and super high stability.
- Support parallel mode to ensure the real-time display demand of large screen.
- Low power consumption, energy saving and environmental protection design, internal conduction heat dissipation without any external heat dissipation measures, high reliability.
BIT-MSE-8K-204HD Professional 3D 2X2 8K 1x4 4K UHD led video wall controller box appliance
Ultra high resolution desktop application, super large screen wall, command and dispatching system, multi screen video monitoring, engineering display application, multi-channel projection, virtual reality, ring screen cinema, large advertising wall, LCD / LED multi screen, etc.
BIT-MSE-8K-204HD Professional 3D 2X2 8K 1x4 4K UHD led video wall controller box Specification
|
Parameters
|
BIT-MSE-8K-204HD |
| Single input maximum resolution | 600MHz |
| Single output maximum resolution | 165MHz |

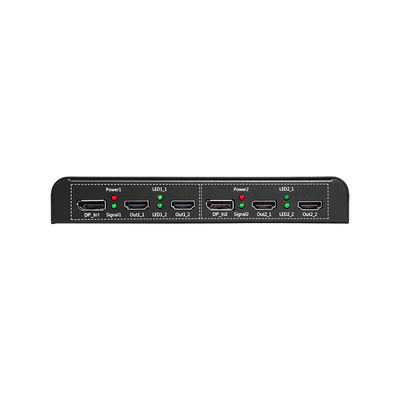

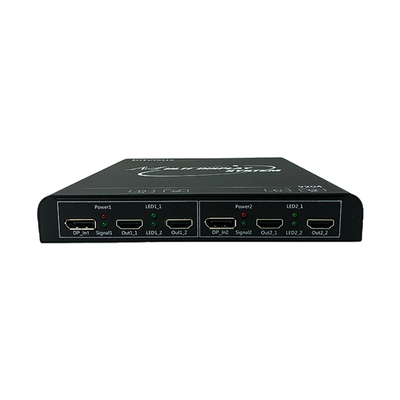

| Input port |
2 * DP HDCP2.2 |
| Output port | 4 *HDMI |
| 2 screens splicing mode |
2x1920x1200@60Hz 2x1920x1080@60Hz 2x1024x768@60Hz 2x1280x720@60Hz 2x3840x2160@30Hz |
| Default | 3840x1200@60Hz |
| Row 1 Column 2 splicing mode | 7680x2160@30Hz |
| Row 2 Column 2 splicing mode | 7680x4320@30Hz |
| Output distance (Normal HDMI cable) | 15 meters |

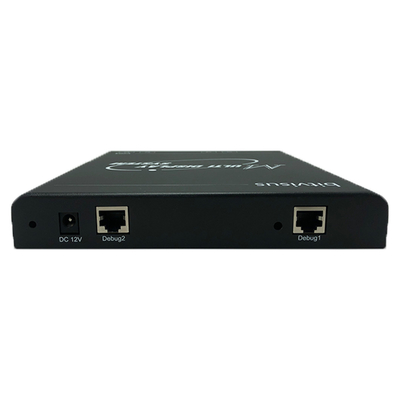

| Power | 12V@2A AC-DC |
| Warranty | 1 Year |
| Size | 186mmx204mmx29mm |
