Bitvisus Professional Audio Video 1X6 6X1 3X2 Video Wall Controller 2X6 1X5 1X7 Hd Display Processor
Bitvisus Professional Audio Video 1X6 6X1 3X2 Video Wall Controller 2X6 1X5 1X7 Hd Display Processor
Basic Properties
Country Of Origin
China
Brand Name
Bitvisus
Certificate
CE,HDMI,HDCP,RoHS,FCC
PRODUCT MODEL
BIT-VWC-406R
Trading Properties
MOQ
1Piece
Unit Price
Contact Us
Payment Method
Paypal, T/T,
Supply Capacity
1000Piece/30day
Product Summary
Bitvisus Professional Audio Video 1X6 6X1 3X2 Video Wall Controller 2X6 1X5 1X7 Hd Display Processor BIT-VWC-406R is an ultra HD Rotary Splicer by Shenzhen Bitvisus Technology Limited. Support 4 channels HDMI input (1 channel 4K@60Hz,3 channels 4K@30Hz), 1 channel DP input (4K@60Hz), 6 channels ...
Product Details
Highlight:
1X6 Video Wall Controller
,3X2 Video Wall Controller
,6X1 Video Wall Controller
Model Number:
BIT-VWC-406R
Brand Name:
Bitvisus
Place Of Origin:
Guangdong, China
Power:
5w
Keywords:
TV Wall Controller
Frequency Range (Hz):
1.3km
Dimension (L X W X H):
-
Feature:
Hdmi Switcher
Input:
4
Color:
Black
Product Description
Bitvisus Professional Audio Video 1X6 6X1 3X2 Video Wall Controller 2X6 1X5 1X7 Hd Display Processor

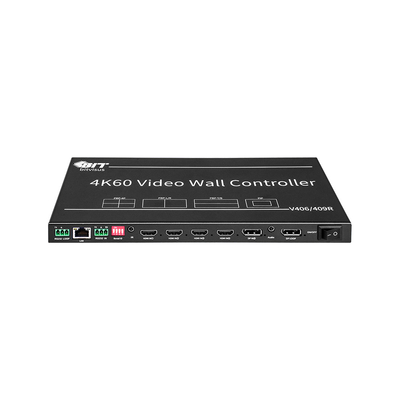

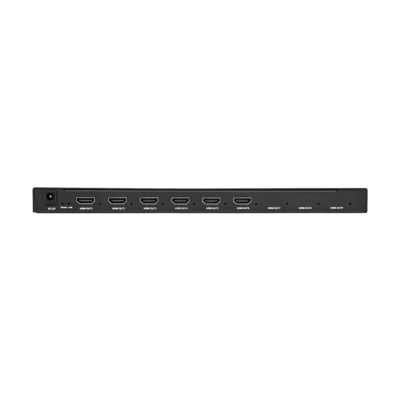

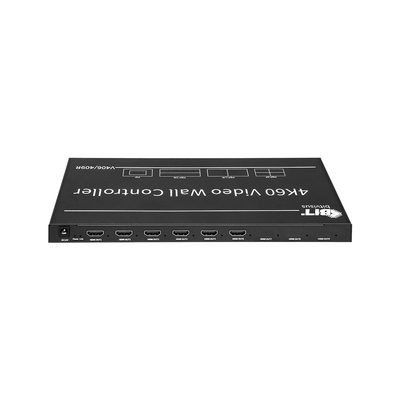

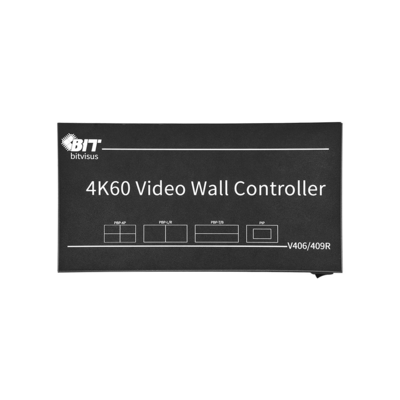

BIT-VWC-406R is an ultra HD Rotary Splicer by Shenzhen Bitvisus Technology Limited. Support 4 channels HDMI input (1 channel 4K@60Hz,3 channels 4K@30Hz), 1 channel DP input (4K@60Hz), 6 channels output HDMI (1080p@60Hz), 1 channel DP loop out.
Bitvisus Professional Audio Video 1X6 6X1 3X2 Video Wall Controller 2X6 1X5 1X7 Hd Display Processor specificities
- Input Maximum Resolution: 4096x2160 @ 60Hz, ensuring stunning visuals.
- Output Maximum Resolution: 1920x1080 @ 60Hz, optimized for a smooth viewing experience.
- Rotation Flexibility:
- Input Supports Full-Screen 90° Rotation (exclusive to Single-Picture Mode), enhancing versatility.
- Output Offers 180° Rotation of the First Line (available solely in Two-Line Stitching Mode), accommodating diverse display needs.
- Image Quality Assurance:
- Maintains pristine picture quality with no stretching, deformation, or input source compression, ensuring crystal-clear visuals.
- Display Modes:
- Seamless support for Single Display Mode (1x1), simplifying setup and use.
- Control Options:
- Integrated Infrared Remote Control for intuitive operation.
- Serial RS232 Control for professional-grade integration and automation.
- Energy Efficiency & Durability:
- Designed for low power consumption, promoting energy savings and environmental friendliness.
- Features internal conductive heat dissipation, eliminating the need for any external cooling measures while ensuring exceptional reliability.
- Broad Compatibility:
- Accepts Computers, Android Boxes, Game Consoles, and more as input sources, broadening its applicability.
- Advanced Processing Power:
- Equipped with a 40nm high-end programmable FPGA chip, leveraging a full hardware real-time processing architecture that delivers ultra-fast processing speeds without lag, ensuring a smooth and responsive user experience.
Bitvisus Professional Audio Video 1X6 6X1 3X2 Video Wall Controller 2X6 1X5 1X7 Hd Display Processor appliance
Application Areas:Security monitor,Data center,Advertising,Meeting room,Financial sector,Market
Packing List
1 * 5x6 Video Wall Controller
1 * IR Remote control
1 * IR extension line
1 * DC 12V 2A Power Adapter (AU/ EU/ UK/US Standard)
Bitvisus Professional Audio Video 1X6 6X1 3X2 Video Wall Controller 2X6 1X5 1X7 Hd Display Processor Specification
| Product name | BIT-V406R |
| Input Max. Pixel FPS | 600MHz |
| Input supports the highest resolution | 3840*2160@60Hz |
| DP signal | Display port 1.2*1 |
| HDMI signal | HDMI 2.0*1,,HDMI 1.4 *3 |
| Output Max. Pixel FPS | 165MHz |
| Output single screen support resolution | 1920*1080@60Hz |
| HDMI output interface | HDMI 1.3 * 6 |
| Audio output | 3.5mm Headphone |
| Control method | Remote control, RS232 serial port (can be looped out) |
| Factory default resolution | HDMI:3840*2160@60Hz DP:3840*2160@60Hz |
| Support custom resolution | Yes |
| Operating temperature | 0℃-50℃ |
| Power consumption | 12W |
| Power supply | 12V@2A AC-DC |
| Weight | 840g |
