Product Details:
|
Brand Name: | Bitvisus | Place Of Origin: | Guangdong, China |
---|---|---|---|
Model Number: | BIT-VWC-409R | Power: | 12V / 2A |
Annex: | One DP Cable One 12V@2A AC-DC One Remote Control | Control Method: | Remote Control, RS232 Serial Port |
HDMI Signal: | HDMI2.0*1,,HDMI1.4*3 | HDMI Output Interface: | HDMI1.3*9 |
Loop Out Signal: | Display Port 1.2*1 | Audio Output: | 3.5mm Headphone |
High Light: | 2x4 Video Wall Controller,Video Wall Controller 3x6,HDMI TV Rotating Splicing Processor |

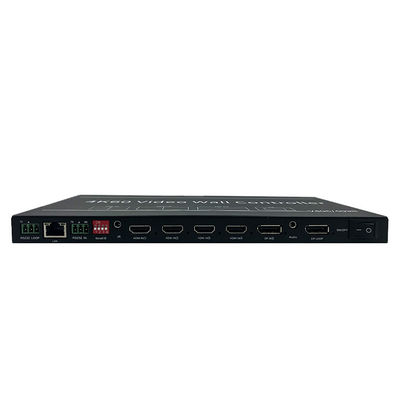

The BIT-VWC-409R from Shenzhen Bitvisus Technology is a top-notch Ultra HD Rotary Splicer. It supports 4 HDMI inputs (1x4K@60Hz, 3x4K@30Hz), 1 DP input (4K@60Hz), and offers 9 HDMI outputs (1080p@60Hz) plus 1 DP loop-out. Perfect for high-res multimedia setups and professional displays.
● Input Max supports 4096x2160@ 60Hz. output max supports 1920x1080 @ 60Hz.
● The input supports full screen rotation of 90 °(only supported in single-picture mode), and the output supports 180 ° rotation of the first line (only supported when the stitching mode is two lines).
● no stretching, no deformation, no need to compress the input source, the picture is clear.
● Support single display mode (1x1).
● Support infrared remote control, serial RS232 control.
● Low power consumption, energy saving and environmental protection. Conductive heat dissipation is used internally.
● without any external heat dissipation measures, and the reliability is extremely high.
● Support Computers, Android boxs, game consoles and other devices as input source.
● Using 40nm high-end programmable FPGA chip, full hardware real-time processing architecture, ultra-fast processing speed without delay.
Model Number | BIT-VWC-409R |
Product features | Support any splicing in 9 screens |
Brand Name | Bitvisus |
Model Number | BIT-VWC-409R |
Warranty | 12months-1year |
Certification | CE,FCC,ROHS |
Power | 24W |
Voltage | 12V 2A |
Customized | yes |
Product Type | 4K TV video wall controller switcher |
Light Source Type | 4K |
Product name | 3x3 video wall controller switcher |
Keyword | video wall processor |
Keyword 1 | Matrix switcher |
Keyword 2 | 4K video wall controller |
input | 4 HDMI and 1 DP |
output | 9 HDMI |
Resolution | 4096X2160@60Hz |
Type | HDMI video wall controller switcher |
ouput Resolution | 1920X1080@60HZ |
