Product Details:
Place of Origin: China
Brand Name: Bitvisus
Certification: CE,HDMI,HDCP,RoHS,FCC
Model Number: BIT-MSE-8K-310HD
Payment & Shipping Terms:
Minimum Order Quantity: 1Piece
Price: Contact Us
Packaging Details: Packing box
Delivery Time: 7-30day
Payment Terms: Paypal, T/T,
Supply Ability: 1000Piece/30day

Bitvisus Point to point 2x4 2x5 1x10 Edge Blending Processor HDMI 8K Video Wall Controller

Description
Place Of Origin: Guangdong, China Brand Name: Bitvisus
Product Name: Multi Channel Projection Splicing Fusion Power: Other
Frequency Range (Hz): Other Dimension (L X W X H): Customized
Resolution: 6Kx4K@60Hz Feature1: Point-to-point
Feature2: Supports Large-scale Parallel Connection

Bitvisus Point to point 2x4 2x5 1x10 Edge Blending Processor HDMI 8K Video Wall Controller

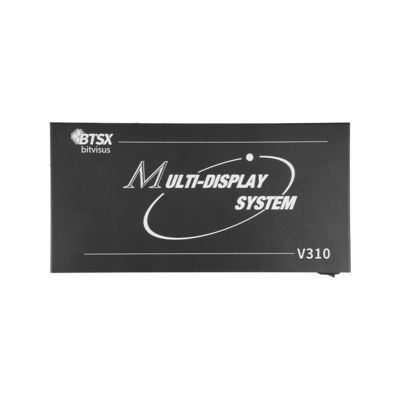

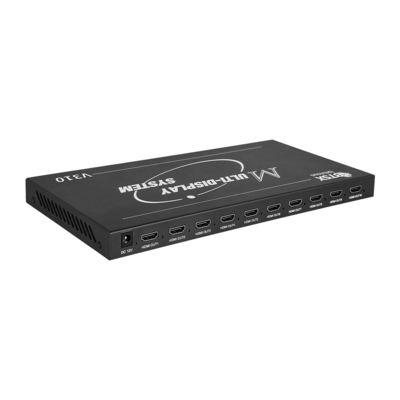

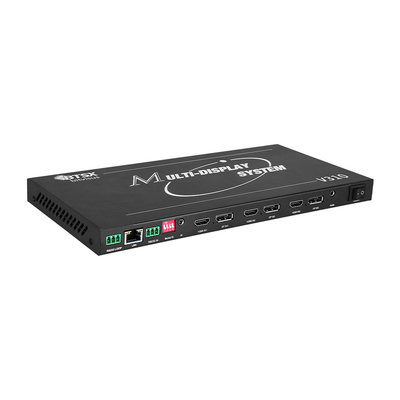

The BIT-MSE-8K-310HD is an industrial-grade, high-performance solution tailored for multi-desktop operation and seamless multi-channel projection integration. Featuring HDMI/DP input and HDMI output interfaces, it boasts exceptional versatility and scalability. With a maximum configuration of 2 inputs to 7 outputs, it enables a versatile 1x7 odd screen splicing mode, enhancing visual impact and flexibility.



Bitvisus Point to point 2x4 2x5 1x10 Edge Blending Processor HDMI 8K Video Wall Controller 0

Bitvisus Point to point 2x4 2x5 1x10 Edge Blending Processor HDMI 8K Video Wall Controller  specificities

1,BIT-MSE-8K-310HD is an industrial high performance product specially developed for multi-desktop operation and multi-channel projection integration. It adopts HDMI/DP input interface and HDMI output interface.
2, the maximum support for 2 in 7 out, can be combined to achieve 1x7 odd screen splicing mode.
3, its ultra-high definition resolution supports the highest 6Kx4K@60Hz, the highest output single port 1920x1200@60Hz.
4, support 1x5/1x7, point-to-point, no stretch, no deformation, more open field of vision.
5, the use of 45nm process high-end programmable FPGA chip, all hardware real-time processing architecture, ultra-fast processing speed without delay.
6, industrial design, thickened 4-layer PCB board, 16KV super anti-static ability, super product stability.
7.Low power consumption, energy saving and environmental protection design, internal conduction heat dissipation, without any external heat dissipation measures, high reliability.

Bitvisus Point to point 2x4 2x5 1x10 Edge Blending Processor HDMI 8K Video Wall Controller 1



Bitvisus Point to point 2x4 2x5 1x10 Edge Blending Processor HDMI 8K Video Wall Controller appliance

Ultra-high resolution desktop application, large screen wall,
command and dispatch system, multi-screen video surveillance,
engineering display application, multi-channel projection,
virtual reality, ring screen theater, large advertising wall,
LCD/LED multi-screen, etc.





Bitvisus Point to point 2x4 2x5 1x10 Edge Blending Processor HDMI 8K Video Wall Controller 2



Bitvisus Point to point 2x4 2x5 1x10 Edge Blending Processor HDMI 8K Video Wall Controller parameters

Product name Edge blending Multi Projectors

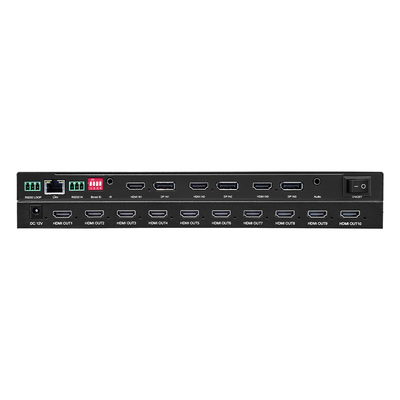

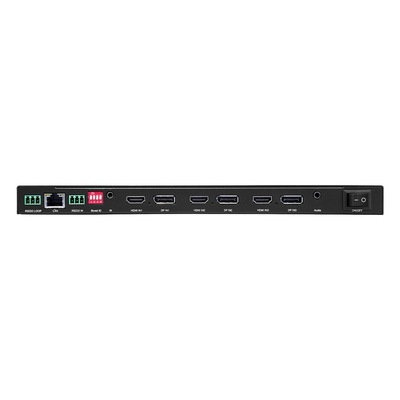

Input interface type 3 HDMI ports, 3 DP ports , HDCP2.2
Output interface type

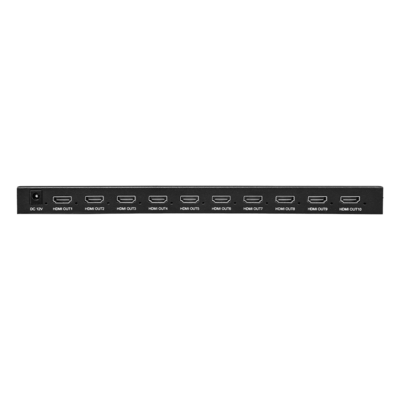

10 HDMI outputs

Input video pixel frequency 616MHz
Output video pixel frequency 165MHz
Enter cable length ≤ 3 meters
Output cable length ≤ 15 meters
Power supply 12V@2A AC-DC
Support OEM/ODM
Package Equipment *1, Power *1, Certificate *1, Warranty card *1
Warranty 1 Year
