4K60 Video Processor – 4 Inputs, 16 Outputs for Multi-Screen DisplayProfessional 4K Video Wall Processor – Seamless Switching & Splicing16-Channel HDMI Video Processor – Ideal for Command & Contro

Name: 4K60 Video Processor – 4 Inputs, 16 Outputs for Multi-Screen DisplayProfessional 4K Video Wall Processor – Seamless Switching & Splicing16-Channel HDMI Video Processor – Ideal for Command & Contro
Brand: Shenzhen Bitvisus Technology Limited
SKU: BIT-VP-U1-MD416
Price: 100000000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Bitvisus

Certification: CE,HDMI,HDCP,RoHS,FCC

Model Number: BIT-VP-U1-MD416

Payment & Shipping Terms

Minimum Order Quantity: 1Piece

Price: Contact Us

Packaging Details: Packing box

Delivery Time: 7-30day

Payment Terms: ,L/C,D/A,D/P,T/T

Supply Ability: 1000Piece/30day

Get Best Price

Product Details

Product Description

Ratings & Reviews

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    16 Outputs Video Wall Processor, Multi-Screen Display Video Wall Processor, 4 Inputs Video Wall Processor


Product Name:	4k Video Processor	Display Effect:	4 * 4K60 Input
Input Resolution:	1920x1080P60,3840x2160P60,4096x2160P60.	Input Interface:	4xHDMI 2.0 , 2xDP 1.2
Output Interface:	16xHDMI 1.4	Control Mode:	Remote Control , RS232 . Computer
Packaging Dimensions:	545mm X 465mm X 120mm	Audio:	HDMI Audio Follow-On, 3.5MM Audio Separation
Power:	220V	After-sales Service:	3 Years

Product Name:	4k Video Processor
Display Effect:	4 * 4K60 Input
Input Resolution:	1920x1080P60,3840x2160P60,4096x2160P60.
Input Interface:	4xHDMI 2.0 , 2xDP 1.2
Output Interface:	16xHDMI 1.4
Control Mode:	Remote Control , RS232 . Computer
Packaging Dimensions:	545mm X 465mm X 120mm
Audio:	HDMI Audio Follow-On, 3.5MM Audio Separation
Power:	220V
After-sales Service:	3 Years

Product Description

1. Product Overview

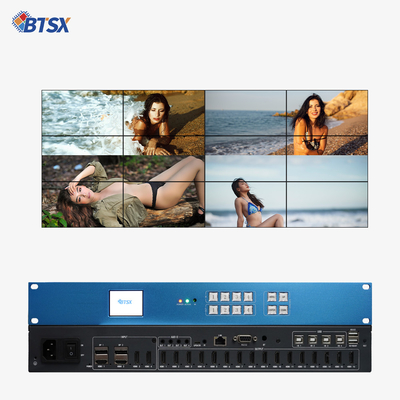

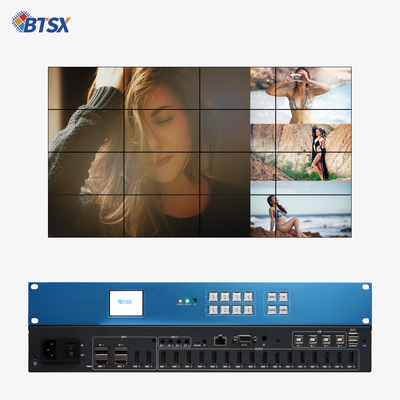

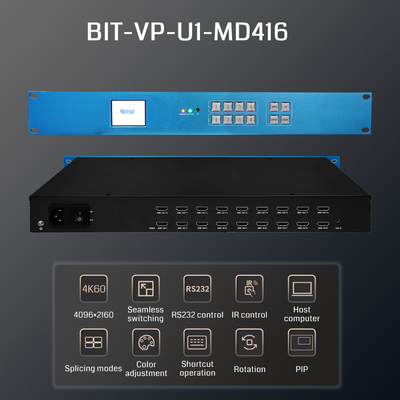

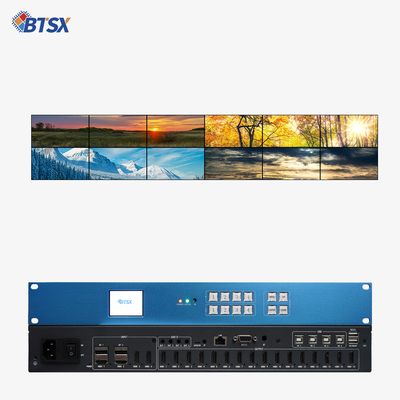

The BIT-VP-U1-MD416 is a high-performance 4K60 video processor designed for multi-screen display applications. With 4x 4K60 inputs (HDMI/DP) and 16x 1080P60 HDMI outputs, it supports 4-window display, splicing, roaming, and seamless switching, making it ideal for command centers, digital signage, and live events.

2. Key Features

✅ 4K60 Input & 16x 1080P Output – Supports 4 HDMI/DP inputs and 16 HDMI outputs.
✅ Multi-Window Display – 4 windows with adjustable size, position, and transparency.
✅ Seamless Switching – No black screen during input changes.
✅ KVM Support – Control 4 computers with 1 keyboard/mouse.
✅ RS232 & Remote Control – Flexible control options.
✅ Freeze & Mirroring – Screen freezing and mirroring functions.
✅ Audio Embedding – HDMI audio follow & 3.5mm audio separation.

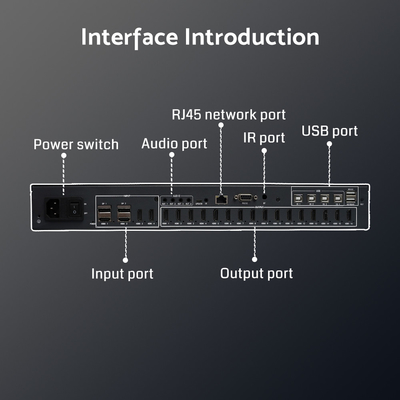

3. Technical Specifications

Inputs: 4x HDMI 2.0, 2x DP 1.2
Outputs: 16x HDMI 1.4 (1080P60)
Control: Remote, RS232, PC Software
Power Supply: 220V, 50W
Dimensions: 482.6mm x 250mm x 59mm

4. Applications

✔ Command & Control Rooms
✔ Digital Signage & Retail Displays
✔ Broadcasting & Live Events
✔ Security & Surveillance Centers
✔ Conference Rooms & Education

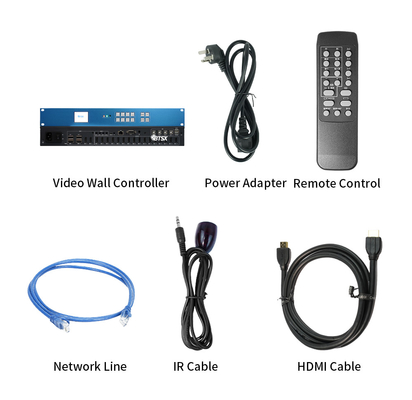

5. Package Includes

1x BIT-VP-U1-MD416 Video Processor
1x Power Cable
1x HDMI/DP Cable
1x Remote Control
1x IR Infrared Head

6. Why Choose Us?

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

Amanda Lee

United States Sep 10.2025

Helpful (5)

We dropped this HDMI 4K switcher into an education setup with several sources (PCs, media player, document camera) and a bunch of displays around the room. Web control over the network is easy to use, and our techs also like having RS232 and remote as backup options. It pushes 4K video up to 15 meters without any noticeable signal loss, which is perfect because our rack is on the other side of the lecture hall. For the price, the build quality and feature set are excellent.

Nicole Anderson

United States Aug 22.2025

Helpful (4)

Nice little decoder and video wall box. I use the BIT-Dec64-09 to drive a 2x3 display for our operations dashboard. Setup over gigabit Ethernet and HDMI was straightforward, and the browser interface lets me split and merge windows without calling IT every time. Exactly what I needed for a simple 4K60 decoder + multi-screen display solution.

Chris Walker

United States May 27.2025

Helpful (6)

Picked up this UHD support splicing 4K60 4x4 HDMI matrix switch for our small control room and it’s doing exactly what we needed. Four HDMI 2.0 inputs and four HDMI 2.0 outputs make it easy to route different 4K sources to our displays, and the seamless switching plus splicing matrix/overlay features look very professional on screen. Audio and video separation is a bonus because we can break out sound over 3.5 mm and S/PDIF to our mixer.
