Product Details:
|
Transmitter ( TX): | HDMI 1.4 (≤ 5 M) , IR, RS232 Signal | Receiver ( RX): | HDMI 1.4 (≤ 5 M) , IR, RS232 Signal |
---|---|---|---|
Supported Resolution: | 4K30Hz Is Backward Compatible With Standard Resolutions | Signal Format: | Support Common Resolutions Under Various Input Signal Formats ; Support Common Signal Formats Of VESA And HDTV |
Color Space: | Support RGB444 ; YUV Color Space | Transmission Distance: | 10KM |
Through The Switch: | Support One-to-one, One-to-many ( Up To 32 ) Optional (PS: All-gigabit Smart Switch, Supports Port MAC Address Binding, Each Port Requires 800MBPS Of Bandwidth, And The Port Is Not Recommended To Be Full) | EDID Learning: | Support |
KVM: | USB 2.0 , Keyboard And Mouse, U Disk, Radar, Infrared Touch, Printer, Etc. | CEC: | Support |
RS232: | Two-way RS232 Transparent Transmission | Remote Wake Up: | Support |
3D: | Support | Interface Protocol: | HDMI1.4, HDCP 1.4 Compatible With DVI1.0, VGA |
OEM: | Support | Power Supply: | DC 12V 2A |
Size: | 105*76*27mm | After-sales Service: | 3 Year Warranty |
Product Overview

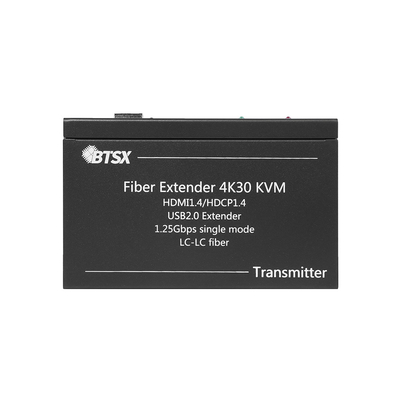

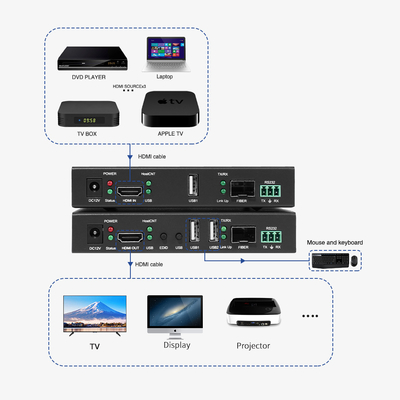

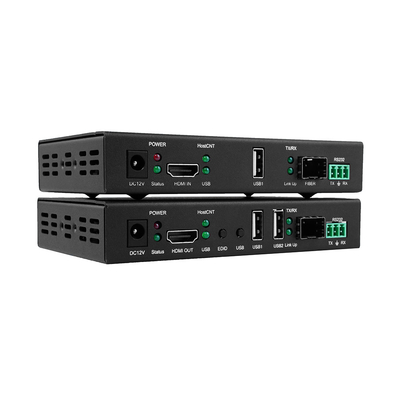

The BIT-Ex-Fib-IP-4K-KVM is a professional-grade HDMI fiber optic extender designed for zero-latency, uncompressed 4K@30Hz video transmission over distances up to 30KM. Engineered with industrial durability and advanced features like KVM, RS232, and EDID learning, it is ideal for demanding AV environments such as control rooms, stadiums, and broadcast studios.
Key Features
4K Ultra HD: Supports resolutions up to 3840x2160@30Hz with full RGB/YUV444 color depth.
Zero Latency: Uncompressed video ensures real-time performance for critical applications.
KVM over Fiber: USB 2.0 ports for keyboard, mouse, and peripheral control up to 10KM.
Bidirectional RS232 & IR: Integrate with AV control systems for seamless operation.

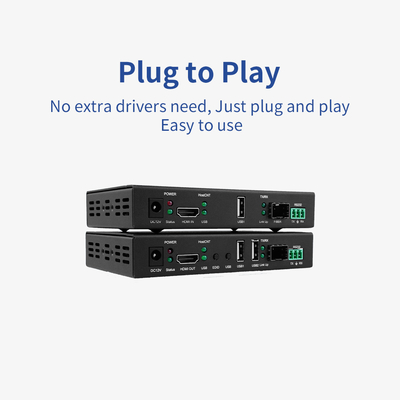

EDID Management: Auto-learn display EDID for plug-and-play compatibility.
Industrial Design: Operates in extreme temperatures (-25°C to 55°C) with robust EMI protection.
Technical Specifications

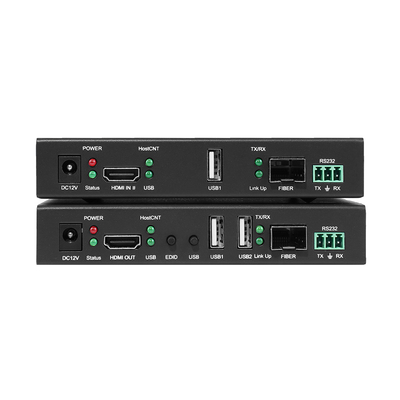

Input/Output: HDMI 1.4, LC single-mode fiber.
Transmission Distance: Up to 30KM (single-mode fiber).
Power Supply: DC 12V/2A (included).
Dimensions: 105x76x27mm (compact rack-mountable design).
Compliance: HDCP 1.4, HDMI 1.4, CE/FCC certified.
Applications

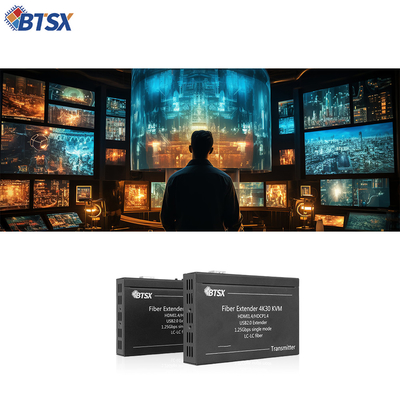

Control Rooms: Multi-screen monitoring with KVM control.
Digital Signage: 4K advertising displays in malls, airports, and retail.

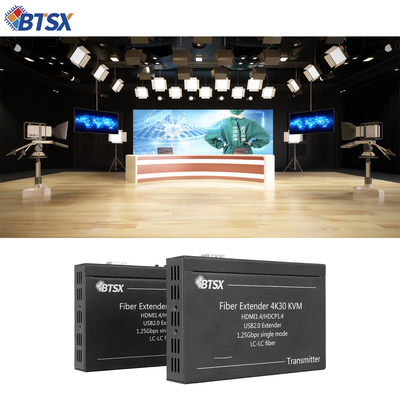

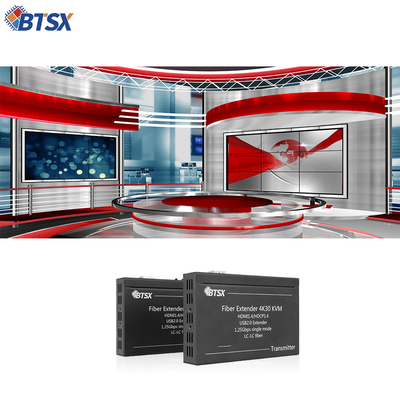

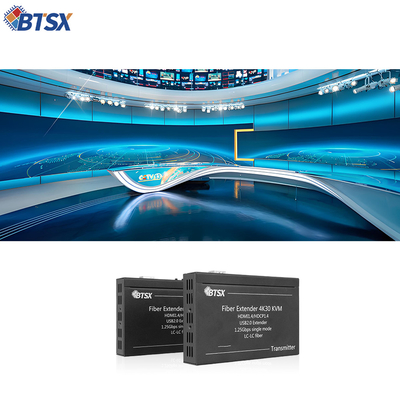

Broadcast: Live 4K video feeds for studios and OB trucks.
Military: Secure AV communication in command centers.
Education: Interactive smart boards and lecture halls.
Package Contents

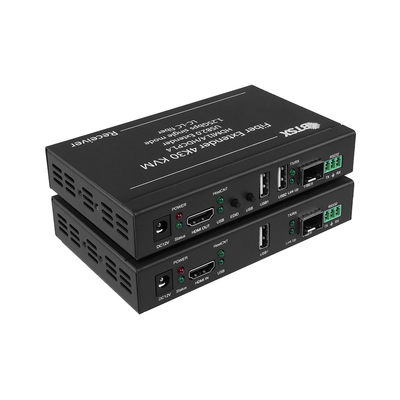

Transmitter (TX) and Receiver (RX) units.
12V/2A power adapters (x2).
LC-LC single-mode fiber modules (x2).
USB-A to USB-B cable.
User manual, warranty card, and certification.
Why Choose Us?
1-Year Warranty: Reliable performance with dedicated support.
OEM Services: Custom branding and feature modifications.
Global Shipping: DHL/FedEx options with fast delivery.
Support & Downloads
Installation guides, firmware updates, and technical FAQs available on our website.
24/7 customer service via email, live chat, and phone.
