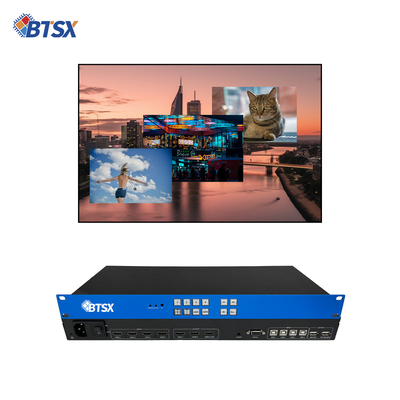

3x HDMI 2.0 Output Ports and Main Unit x 1 Included Video Wall Controller with Enterprise-Grade KVM Functionality

Product Description:

The DDW LCD Video Wall Controller is a cutting-edge product designed for seamless video wall integration in various settings such as Commercial Video Walls, CCTV Video Walls, and more. With its advanced features and capabilities, this controller offers unparalleled performance and versatility.

Supported Output Resolutions:

• 4096x2160P60Hz
• 4096x2160P30Hz
• 3840x2160P60Hz
• 3840x2160P30Hz
• 2560x1600P60Hz
• 2560x1440P60Hz
• 2560x1080P60Hz
• 2048x1152P60Hz
• 1920x1440P60Hz
• 1920x1200P60Hz
• 1920x1080P60Hz

Key Capabilities:

• Display 4 HDMI sources simultaneously on a single 4K screen
• Support for HDCP 2.2 compliant sources
• Pixel-perfect scaling across all outputs
• <1ms switching latency for live production

Accessories List:

• 220V power cable x 1
• remote control x 1

Warranty: 3 Year

Video Processing:

• Input Resolutions: Up to 4096x2160@60Hz (4:4:4)
• Output Resolutions: 11 presets including 3840x2160@60Hz
• Color Depth: 8/10/12-bit processing
• HDR Support: HDR10 pass-through

Features:

• Product Name: Video Wall Controller
• Key Capabilities:
  • Display 4 HDMI sources simultaneously on a single 4K screen
  • Support for HDCP 2.2 compliant sources
  • Pixel-perfect scaling across all outputs
  • <1ms switching latency for live production
• Supported Output Resolutions:
  • 4096x2160P60Hz
  • 4096x2160P30Hz
  • 3840x2160P60Hz
  • 3840x2160P30Hz
  • 2560x1600P60Hz
  • 2560x1440P60Hz
  • 2560x1080P60Hz
  • 2048x1152P60Hz
  • 1920x1440P60Hz
  • 1920x1200P60Hz
  • 1920x1080P60Hz
• Packaging Weight: 3KG
• Audio Features:
  • HDMI embedded audio
  • 3.5mm analog audio extraction
  • Audio follow/breakaway selection
• Professional Solution for:
  • Broadcast Studios
  • Military Command Centers
  • Corporate Boardrooms
  • University Lecture Halls
  • Surveillance

Technical Parameters:

Applications:

When it comes to creating stunning visual displays, the Bitvisus BIT-VJ-106Pro Video Wall Controller is the perfect solution for a variety of Product Application Occasions and Scenarios.

Whether you are looking to set up a Curved Video Wall for an immersive viewing experience, a Creative LED Video Wall for a dynamic presentation, or a high-resolution 4K Video Wall for crystal-clear images, this video wall controller from Bitvisus is up to the task.

With certifications including CE, HDMI, HDCP, RoHS, and FCC, you can trust the quality and reliability of this product. Originating from China, the BIT-VJ-106Pro offers a Minimum Order Quantity of 1 Piece at a competitive price - simply Contact Us for more information.

Accepted Payment Terms include T/T and PayPal, making it convenient for customers to make their purchases. With a Supply Ability of 1000 Pieces per 30 days, you can rest assured that your needs will be met in a timely manner.

Delivery Time ranges from 7 to 30 days, with Packaging Details specified as a Packing box for safe transportation. The BIT-MV-U1-MD403 4K60 Multi-viewer KVM Processor with 4 HDMI 2.0 Inputs is the ideal product for controlling your video wall setup.

Control Methods for this multi-viewer include keyboard and mouse, remote control, panel buttons, and RS232, providing users with flexible options. The Comprehensive Control Options such as Front Panel Controls, IR Remote Included, and RS232 Protocol make managing your video wall a breeze.

Considering the Physical Parameters, the BIT-VJ-106Pro is Rack-Mountable in a 1U standard size of 483×44.5mm. It operates on 100-240V AC, 50/60Hz power and can withstand temperatures from 0°C to 40°C. With an MTBF of over 50,000 hours, this video wall controller is built to last.

What sets our Multi-Viewer apart is the Industry-Leading Stability it offers - no crashes or freezes, making it perfect for 24/7 Operation. The passive cooling design ensures reliable performance, while its Future-Proof 4K60 Support means it is ready for 8K scaling. Additionally, a 5-Year Warranty is available, providing peace of mind to customers. Contact us for more details on warranty options.

Support and Services:

Our Video Wall Controller product offers comprehensive Product Technical Support and Services to ensure seamless performance and customer satisfaction. Our expert technicians are available to provide assistance with product setup, troubleshooting, and maintenance. Additionally, we offer training sessions to help users maximize the capabilities of the Video Wall Controller. Our support team is committed to delivering prompt and efficient service to meet the needs of our customers.

Packing and Shipping:

Product Packaging:

The Video Wall Controller is carefully packaged in a sturdy cardboard box to ensure safe delivery. Inside the box, the controller is wrapped in protective foam padding to prevent any damage during transit. The package also includes a user manual and necessary cables for easy setup.

Shipping:

Orders for the Video Wall Controller are processed within 1-2 business days. We offer standard and expedited shipping options to cater to your delivery needs. All shipments are tracked, and customers will receive a tracking number once the order is dispatched. We strive to deliver your product in a timely manner while ensuring it reaches you in perfect condition.

FAQ:

Q: What is the brand name of the Video Wall Controller product?

A: The brand name of this Video Wall Controller is Bitvisus.

Q: What is the model number of the Video Wall Controller?

A: The model number of this Video Wall Controller is BIT-VJ-106Pro.

Q: What certifications does the Video Wall Controller have?

A: The Video Wall Controller is certified with CE, HDMI, HDCP, RoHS, and FCC.

Q: What is the minimum order quantity for the Video Wall Controller?

A: The minimum order quantity for this Video Wall Controller is 1 piece.

Q: What are the available payment terms for purchasing the Video Wall Controller?

A: The available payment terms for purchasing this Video Wall Controller are T/T and PayPal.
