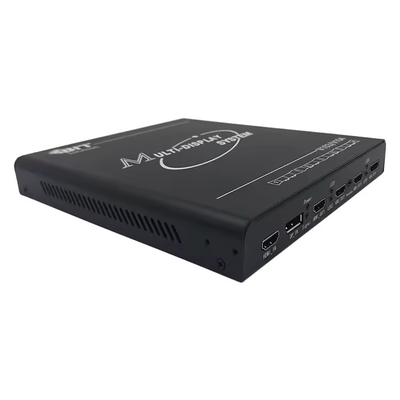

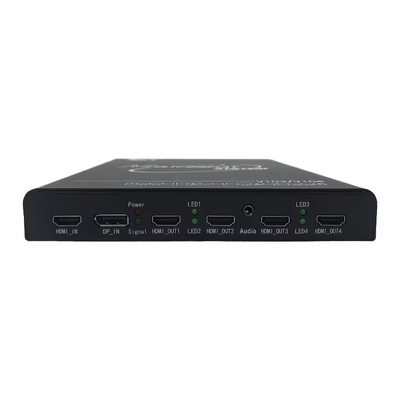

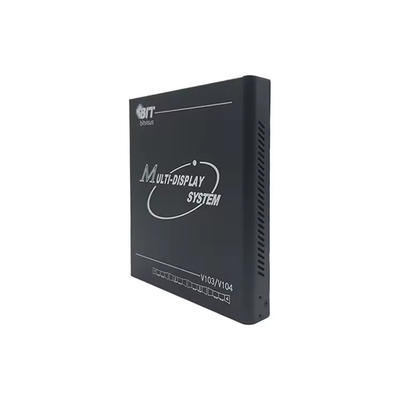

4K60 HDMI Multi Screen Expander for Ultra-Resolution Desktop Applications and Large Screen Walls

Name: 4K60 HDMI Multi Screen Expander for Ultra-Resolution Desktop Applications and Large Screen Walls
Brand: Shenzhen Bitvisus Technology Limited
SKU: BIT-MSE-4K60-104HD
Price: 100000000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Bitvisus

Certification: CE,FCC,GB,ROHS

Model Number: BIT-MSE-4K60-104HD

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Contact us

Packaging Details: 37*24*11CM

Delivery Time: 3-15

Payment Terms: T/T,D/P

Supply Ability: 1000pieces

Get Best Price

Product Details

Product Description

Ratings & Reviews

Product Details

Highlight:
                                                                                                                                                                                                                                    Ultra-Resolution Multi Screen Expander, Large Screen Walls Multi Screen Expander, 4K60 HDMI Multi Screen Expander


Product Dimensions:	372411CM	Oem:	Support
Output Resolution:	1920x1080P60	Application:	Disco\Bar\Club\Home
Color Depth:	8-bit RGB/YUV444/422	Panel:	Blue & Aluminum
Power Supply:	12V@2A AC-DC	Quality Assurance:	One Year

Product Dimensions:	372411CM
Oem:	Support
Output Resolution:	1920x1080P60
Application:	Disco\Bar\Club\Home
Color Depth:	8-bit RGB/YUV444/422
Panel:	Blue & Aluminum
Power Supply:	12V@2A AC-DC
Quality Assurance:	One Year

Product Description

4K60 HDMI multi screen expander used in Ultra-high-resolution desktop applications, large screen walls Product features

1. BIT-MSE-4K60-104HD creative ultra-clear processor is anindustrial-grade high-performance product speciallydeveloped for the integration of multi-desktop operation andmulti-channel projojection. It adopts HDMI/DP input interfaceand HDMI output
2. Super high resolution, the output supports a maximumresolution of 4x1920x1200@60Hz, which is backwardcompatible with low resolution.
3. Support 1xN, point to point, no stretching, no deformation, and a wider field of vision.
4. Support to modify fy the EDID through the USB interface.
5. Adopt high-end programmable FPGA chip with 45nmtechnology, y, full hardware real-time processing architecture, ultra fast processing speed without delay.
6. Industrial-grade design, thickened 4-layer PCB board, 16KVsuper strong anti-static ability, y, super product stability.
7. Support parallel operation to meet the real-time display requirements of large screen.
8. Low power consumption, energy saving and environmentalprotection design. Conductive heat dissipation is used insidewithout any external heat dissipation measures.

4K60 HDMI Multi Screen Expander for Ultra-Resolution Desktop Applications and Large Screen Walls 0

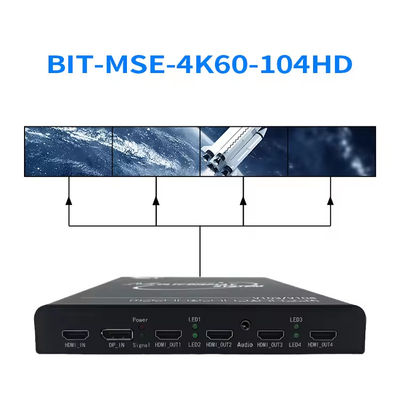

4K60 HDMI multi screen expander used in Ultra-high-resolution desktop applications, large screen walls Application

Ultra-high-resolution desktop applications, large screen walls, command and dispatch systems, multi-screen videosurveillance, engineering display applications, multi-channelprojojection, VR, ring screen theaters, large advertising walls, LCD / LED multi-screen, etc.

4K60 HDMI multi screen expander used in Ultra-high-resolution desktop applications, large screen walls

Input Max. PixelFPS	600MHz
Output Max. PixelFPS	165MHz
Input type	HDMI or DP (choose one, HDMI priority)
Output type	4 个 HDMI
3 screens supporttypical resolution	3x1920x1200@60Hz 3x1920x1080@60Hz 3x1280x800@60Hz 3x1024x768@60Hz
Product factorydefault resolution	3840x2160@60Hz
power supply	12V@2A AC-DC
Warranty	One year

4K60 HDMI multi screen expander used in Ultra-high-resolution desktop applications, large screen walls

4K60 HDMI Multi Screen Expander for Ultra-Resolution Desktop Applications and Large Screen Walls 1
