4K60 2 Input 9 Output Video Wall Controller with Any Splicing Mode for Professional Multi-Screen Viewer

Name: 4K60 2 Input 9 Output Video Wall Controller with Any Splicing Mode for Professional Multi-Screen Viewer
Brand: Shenzhen Bitvisus Technology Limited
SKU: BIT-MSE-209Pro
Price: 5.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong China

Brand Name: Bitvisus

Certification: CE/FCC/RoHS/ANSI C63

Model Number: BIT-MSE-209Pro

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 1unit USD322,>10units USD275

Packaging Details: 1.8KG, 37mm*23mm*9mm

Delivery Time: 7 Days

Payment Terms: T/T,PayPal

Supply Ability: 1000,1unit 3 days,10units 7 days

Get Best Price

Product Details

Product Description

Ratings & Reviews

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    2x4 Pixel Multi-Screen Viewer, 3x3 Pixel Multi-Screen Viewer, Professional Display Multi-Screen Viewer


Product Name:	BIT-MSE-209Pro	Input Port:	2HDMI 2.0, 2DP 1.2 (copper Wire ≤ 3m), Support HDCP 2.2
Output Port:	9*HDMI 1.3 (copper Wire ≤ 15m)	Maximum Input Pixel Clock Frequency:	600MHz
Maximum Output Pixel Clock Frequency:	165MHz	HDCP:	HDCP 2.2
Maximum Input Resolution:	18:153601200P60,81:19209600P60,24:76802400P30,etc.	Output Resolution:	Firmware A:19201200P60,19201080P60.Firmware B:1920*1200P60,etc.
Color Depth:	8bit	Warranty:	1 Year

Product Name:	BIT-MSE-209Pro
Input Port:	2HDMI 2.0, 2DP 1.2 (copper Wire ≤ 3m), Support HDCP 2.2
Output Port:	9*HDMI 1.3 (copper Wire ≤ 15m)
Maximum Input Pixel Clock Frequency:	600MHz
Maximum Output Pixel Clock Frequency:	165MHz
HDCP:	HDCP 2.2
Maximum Input Resolution:	18:153601200P60,81:19209600P60,24:76802400P30,etc.
Output Resolution:	Firmware A:19201200P60,19201080P60.Firmware B:1920*1200P60,etc.
Color Depth:	8bit
Warranty:	1 Year

Product Description

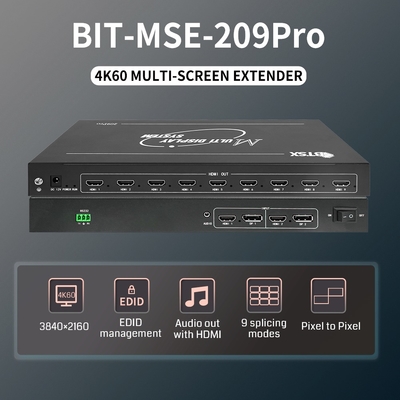

4K 2 in 9 Out Multi-Screen Viewer for Professional Display

Industrial-grade high-performance multi-screen viewer designed for multi-desktop operation and multi-channel projection applications.

Product Overview

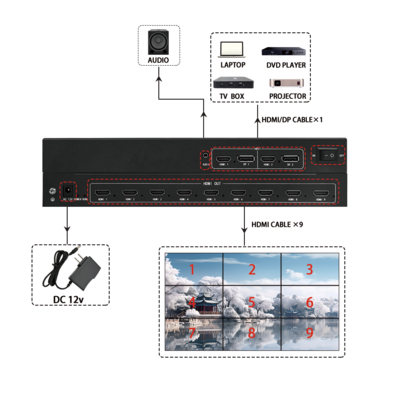

The BIT-MSE-209Pro is engineered for seamless fusion of multi-desktop operation and multi-channel projection, featuring HDMI/DP input interfaces and HDMI output interfaces.

Supports 2 inputs and 9 outputs with any splicing configuration within 9 screens
Single input channel supports resolutions up to 3840x2400@60Hz
Output single channel supports 1920x1200@60Hz with conventional resolution compatibility
Fixed EDID design with customizable input resolution
Supports 1xN, Nx1, NxN point-to-point display without stretching, deformation, or compression
Compatible with computers, Android boxes, game consoles, and various video extenders/splitters

Welcome to contact us to consult about the products required by your project!

Technical Specifications

Product Name	BIT-MSE-209Pro
HDCP	HDCP2.2
Input Interface Type	2-way HDMI 2.0/DP 1.2 (choose one of two, ≤5 meters)
Input Maximum Resolution	3840x2160@60Hz/3840x2400@60Hz, 5760x3240@30Hz/7680x2160@30Hz
Input Color Format	RGB888, 24bit
Output Interface Type	9-way HDMI 1.3
Output Resolution	1920x1080@60Hz, 1920x1200@60Hz (customizable)
Audio	HDMI output, 3.5mm audio port (audio separation)
Power Supply	DC 12V/2A
Power Consumption	22W
Storage/Working Temperature	-10 to 50ºC/0 to 50ºC
Product Size	300mm × 142mm × 35mm
Net Weight	1.8 KG
Accessories	12V/2A power supply ×1, HDMI/DP cable ×2, certificate ×1, warranty card ×1
Warranty	3 years warranty

Key Features

Supports 2-channel 4K60 signal input with HDMI and DP options
Single channel input supports up to 4096x2160P60 resolution
9-channel HDMI interface output supporting 1920x1200P60, 1920x1080P60 resolutions

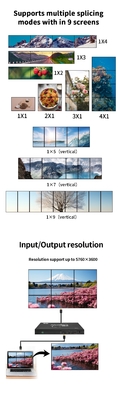

Supports point-to-point splicing of 1x8, 8x1, 9x1, 2x4, 3x3 configurations without stretching or deformation
Customizable input resolution with EDID writing capability
3.5mm interface audio separation and HDMI audio output
Compatible with 1U rack mounting for cabinet installation or desktop/wall mounting
High-end programmable FPGA chip with 28nm technology for real-time processing
Industrial-grade design with 6-layer PCB board and 16KV anti-static protection
Supports parallel use of multiple devices for large screen display requirements
Low power consumption with overheating protection and anti-interference design
Compatible with Bitvisus Window Opening Software for 4K60 multi-screen display

Frequently Asked Questions

Why Choose Bitvisus?

Own warehouse ensuring shipment within 48 hours after payment (weekends and holidays excluded)
OEM/ODM services available for custom requirements
Extensive product range including Video Wall Controllers, Multiscreen Expanders, Multiviewers, Embedded Projector Fusion systems
Proven R&D experience and product quality assurance

Shipping & Payment

Payment Methods: T/T, Visa, PayPal, Western Union, L/C available.

Shipping Options: DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

Brian Mitchell

United States May 23.2025

Helpful (4)

Bought this HDMI 3x3 multi monitor video wall controller for our training room. Setup was basically plug-and-play: 12V power, HDMI in, HDMI out, then fine-tune everything with the IR remote. The 90° rotation in single-screen mode and 180° rotation on the first row in two-line stitching mode are really helpful when we flip a couple of panels to get creative layouts. No stretching or deformation, just a clean 4K video wall controller that does what it says.

Sergey M.

Canada May 16.2025

Helpful (4)

We use this as the main controller in a small command center. Runs multiple sources with no visible lag, even with lots of real-time feeds. The 9 HDMI outputs give us flexibility to rearrange the wall layout later if needed. Would buy again.

Sophia K.

Canada Mar 21.2025

Helpful (3)

Very powerful box. We’re using most of the 15 HDMI outputs for a simulation screen, and it still stays stable and cool. RS232 plus web interface gives our tech guys options, but even I can switch scenes after a quick tutorial. Happy with the purchase.
