12xHDMI2.0 4K60 12 Input 12 Output HDMI Matrix Video Wall Controller for Seamless 4K Video Display

Large Image : 12xHDMI2.0 4K60 12 Input 12 Output HDMI Matrix Video Wall Controller for Seamless 4K Video Display

Product Details:

Place of Origin:	Guangdong China
Brand Name:	Bitvisus
Certification:	CE、FCC、GB
Model Number:	VWC-MD1212Ma

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	1572$
Packaging Details:	5.7KG, 54cm32.5cm22.5cm
Delivery Time:	5-8 work days
Payment Terms:	T/T
Supply Ability:	1000

Contact Now

12xHDMI2.0 4K60 12 Input 12 Output HDMI Matrix Video Wall Controller for Seamless 4K Video Display

Description

Product Name:	VWC-MD1212Ma	Product Type:	12-in 12-out 4K60 Seamless Matrix Splicer
Resolution:	3840x2160@60Hz	Feature:	12 Input Source Seamless Switching
Function:	Splicing+seamless Matrix Switching	Input:	12xHDMI2.0
Output:	12xHDMI2.0	Warranty:	3 Years
Input Interface:	600MHz	Output Interface:	600MHz
Highlight:	4K60 HDMI Matrix Video Wall Controller , 12xHDMI2.0 Matrix Video Wall Controller , 12 Output Video Wall Controller

Product Overview

12-in 12-out 4K60 Seamless Matrix Splicer

⇒Supports 12 HDMI inputs and 12 HDMI outputs;

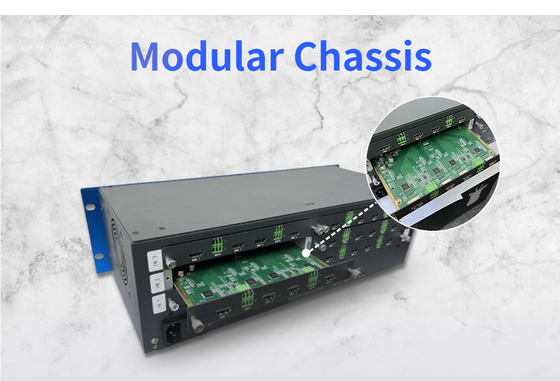

⇒Device input and output support 3 boards, each board 4 HDMI port;

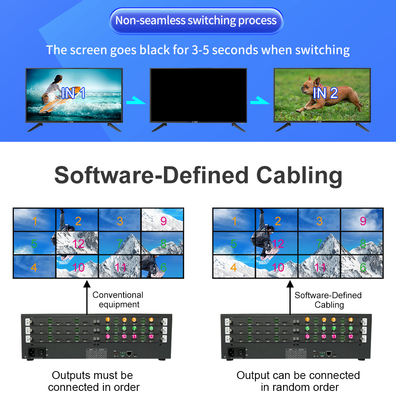

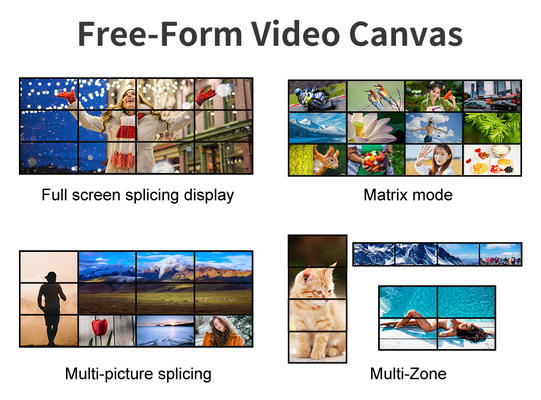

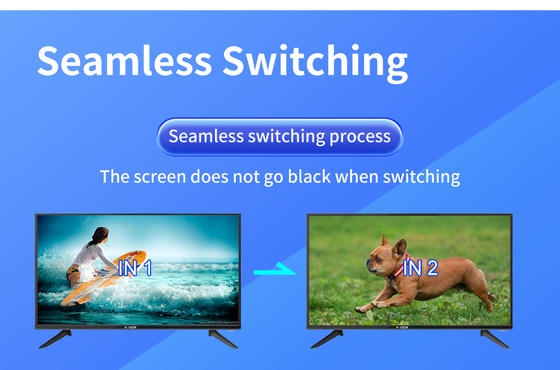

⇒Single device,12 in 12 out, can be combined 12 rectangular splicing mode 12 input source seamless switching, horizontal screen/vertical screen/field shape,and support large-scale parallel use;
⇒The maximum value of the input is 3840x2160P60, backward compatible. The maximum output output is 4096x2160P60;
⇒Supports custom resolution of an independent graphics card and EDID management. You can create and save custom EDID using the WEB UI;
⇒Splicing does not require compression of the input source, and the picture is clear;

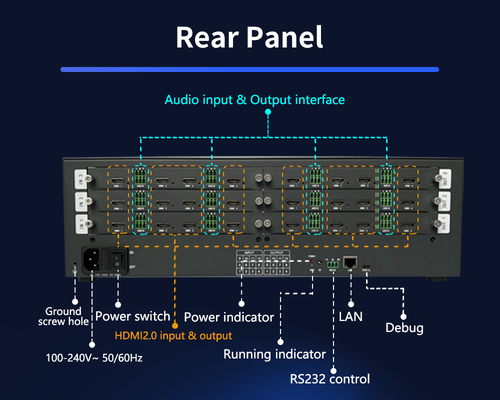

⇒Support infrared remote control, serial port RS232, network port WEB interface, key board control;
⇒Uses HD video process in chip;

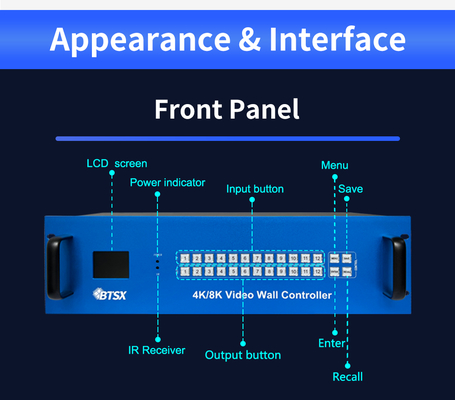

⇒The chassis comes with an LCD display. You can switch the source, set the resolution, and switch the dynamic and static IP addresses by pressing the button.


⇒Welcome to contact us to consult about the products required by your project!

Product Specifications


Product Name
BIT-VWC-MD1212Ma

Input interface type
12xHDMI2.0

Input interface maximum video pixel frequency
600MHz

Input Maximum resolution
3840x2160P60

Input depth
8bit

Color format
RGB444, YUV444, YUV422, YUV420

Output interface type
12xHDMI2.0

Output interface maximum video pixel frequency
600MHz

Output resolution
4096x2160P60

Control mode
RS232 serial port, Web, keypad

Audio

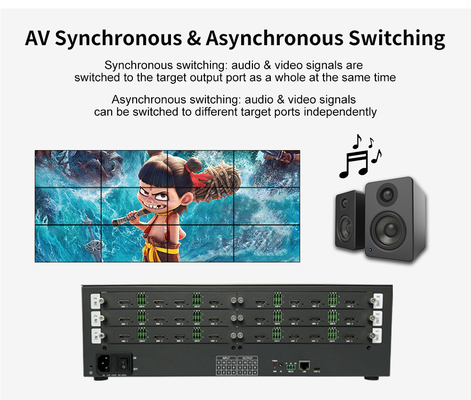

HDMI output audio with out,separate

Power source
220V

Power dissipation
72W(3 input cards,3 output cards)

Storage/working temperature
- 10 to 50 º C/0 to 50 º C

Product size
Length×width×height:483mm×200mm×130mm

Package size
Length×width×height:540mm×325mm×225mm

Product weigh
5KG

Packing weight
5.7KG

Accessories list
1×220V power cable, 13×Phoenix terminal(Selection of 25×Phoenix Terminals), 1-meter Ethernet Cable,USB-AtoType-C(Optional)

After-saleswarranty
3 yearws warranty
