4K60 1 in 4 Out 3X1 2X2 1X4 Pixel Mapping Multi-Screen Expander with HDMl Interface and Pixel-to-pixel Splicing Function

Name: 4K60 1 in 4 Out 3X1 2X2 1X4 Pixel Mapping Multi-Screen Expander with HDMl Interface and Pixel-to-pixel Splicing Function
Brand: Shenzhen Bitvisus Technology Limited
SKU: BIT -MSE-4K60-Mini104Pro
Price: 215 USD
Availability: InStock

Product Details

Place of Origin: Gangdong China

Brand Name: Bitvisus

Certification: CE、FCC、GB

Model Number: BIT -MSE-4K60-Mini104Pro

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 215$

Packaging Details: 2KG, 36cm*21.5cm*7cm

Delivery Time: 5-8 work days

Payment Terms: T/T

Supply Ability: 1000

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    1X4 Pixel Multi-Screen Expander, 4K60 Multi-Screen Expander, Pixel-to-pixel Splicing Multi-Screen Expander


Product Name:	BIT -MSE-4K60-Mini104Pro	Product Type:	4K60 Multi-Screen Expander
Feature:	Horizontal And Vertical Compatible Version	Function:	Pixel-to-pixel Splicing
Input:	HDMl Interface, DP Interface (aiternative, HDMl Preferred)	Output:	4 HDMI Outputs ;13.5mm Audio Output Interface
Warranty:	3 Years	Input Interface:	600MHz
Ouput Interface:	165MHz	Input Resolution:	4K60

Product Name:	BIT -MSE-4K60-Mini104Pro
Product Type:	4K60 Multi-Screen Expander
Feature:	Horizontal And Vertical Compatible Version
Function:	Pixel-to-pixel Splicing
Input:	HDMl Interface, DP Interface (aiternative, HDMl Preferred)
Output:	4 HDMI Outputs ;13.5mm Audio Output Interface
Warranty:	3 Years
Input Interface:	600MHz
Ouput Interface:	165MHz
Input Resolution:	4K60

Product Description

Product Overview

4K60 Multi-Screen Expander

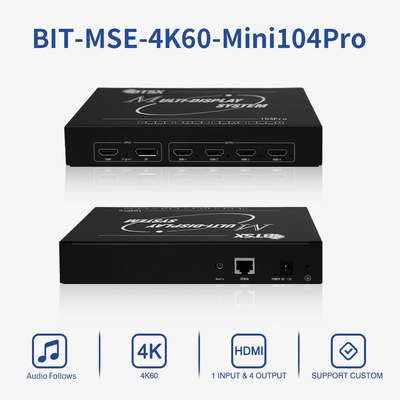

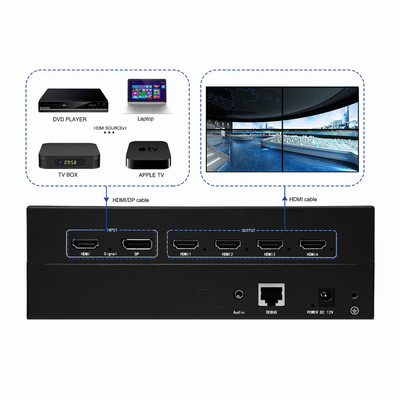

⇒BIT-MSE-4K60-Mini104Pro Creative Ultra HD processor is an industrial-grade high performance product specially developed for the fusion requirements of multi-desktop operation and multi-channel projection. It uses HDMI /DP input interface and HDMl output;

⇒Ultra high resolution, output maximum support resolution 1920x1080@60Hz, downward compatible with low resolution;

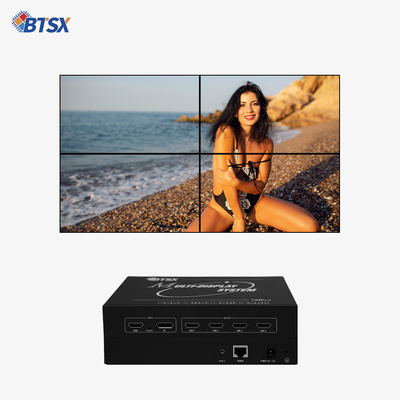

⇒Support 1xl,1 xN, Mx1(multiple parallel can achieve MxN), point to point, no stretching, no deformation, wide vision;

⇒Adopt 28nm process high-end programmable FPGA chip, pure hardware processing architecture, no poisoning, no crash,nanosecond level processing speed, no delay, no tail;

⇒Industrial grade design, more reliable quality, the use of fully imported industrial chips, multi-layer PCB plate, input signal balance gain, output signal drive amplification;

⇒Use the six-digit dial switch, binary mode, to realize the dial switch EDID, switch to the resolution you want at any time;

⇒Low power consumption, energy saving and environmental protection design, internal conduction and heat dissipation,without any external heat dissipation measures, high reliability;

⇒Support audio separation, 3.5mm audio port; support HDMI audio out.


⇒Welcome to contact us to consult about the products required by your project!

Product Specifications


Product Name
BIT-MSE-4K60-Mini104Pro

The highest video pixel frequency of the intput interface
600MHz

The highest video pixel frequeneyof the output interfacc
165MHz

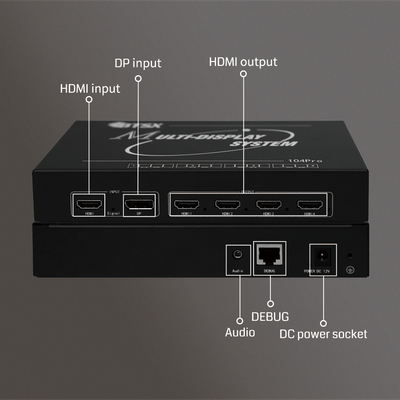

Enter the interface type
HDMl interface, DP interface (alternative, HDMl preferred)

HDCP function
HDCP 2.2

Output interface type
The 4 HDMl outputs ;13.5mm audio output interface

Audio function
Support 3.5mm audio separation; HDMl audio comes out

The 2-screen supports a typical resolution
2x1920x1080@60Hz; 1920x1080x2@60Hz

The 3-screen supports typical resolution
3x1920x1200@60Hz; 3x1920x1080@60Hz; 1920x1200x3@60Hz;  1920x1080x3@60Hz

The 4-screen supports typical resolution
4x1920x1200@60Hz; 4x1920x1080@60Hz; 1920x1200x4@60Hz; 1920x1080x4@60Hz; 2x1920x1080x2@60

Product factory default resolution
3840x2160@60Hz

2x2 with the highest support resolution
3840x2400@60Hz

3x1 /1x3 with the highest support resolution
1920x3600@60Hz/5760x1200@60Hz

4xl / 1x4 with the highes support resolution
1920x4800@60Hz/7680x1200@60Hz

Input cable length
3M (copper wire)

Qutput cable length
15M (copper wire)

Product size
Length×width×height:203mm×114mm×35mm

Package size
Length×width×height:360mm×215mm×70mm

Product weigh
0.8KG

Packing weight
1.1KG

Accessories list
12V/2A power supply* 1, HDMI /DP line *1,qualification certificate *1, Warranty card *1

After-saleswarranty
3 yearws warranty


Features at a Glance










Company Profile

FAQ
Why Choose Bitvisus ?
1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment(weekends and holidays excluded).
2. OEM/ODM offered for our customers.
3.We have various pruduct that may suit for you, such as Video Wall controller, Multiscreen Expander, Multiviewer, Embeded Projector Fusion and so on, which proves that our company has sufficient R&D experience and product quality assurrance.
Shipment & payment
1.T/T, Visa, PayPal, Western Union, L/C available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
How to order?
1. Please send us an email or chat with us via TM, WHATS UP, SKYPE and let us know your requirements for order details.
2. We will provide a proforma invoice to you based on your order requirements.
3. Please check the PI, if everything is OK, we will deliver the goods to you as soon as possible after receiving your payment.

Tags:

Contacts: Mr. Wei

Tel: 86-440-7731-56996

Contact Now

Mail Us

Our Products

Product Name	BIT-MSE-4K60-Mini104Pro
The highest video pixel frequency of the intput interface	600MHz
The highest video pixel frequeneyof the output interfacc	165MHz
Enter the interface type	HDMl interface, DP interface (alternative, HDMl preferred)
HDCP function	HDCP 2.2
Output interface type	The 4 HDMl outputs ;13.5mm audio output interface
Audio function	Support 3.5mm audio separation; HDMl audio comes out
The 2-screen supports a typical resolution	2x1920x1080@60Hz; 1920x1080x2@60Hz
The 3-screen supports typical resolution	3x1920x1200@60Hz; 3x1920x1080@60Hz; 1920x1200x3@60Hz; 1920x1080x3@60Hz
The 4-screen supports typical resolution	4x1920x1200@60Hz; 4x1920x1080@60Hz; 1920x1200x4@60Hz; 1920x1080x4@60Hz; 2x1920x1080x2@60
Product factory default resolution	3840x2160@60Hz
2x2 with the highest support resolution	3840x2400@60Hz
3x1 /1x3 with the highest support resolution	1920x3600@60Hz/5760x1200@60Hz
4xl / 1x4 with the highes support resolution	1920x4800@60Hz/7680x1200@60Hz
Input cable length	3M (copper wire)
Qutput cable length	15M (copper wire)
Product size	Length×width×height:203mm×114mm×35mm
Package size	Length×width×height:360mm×215mm×70mm
Product weigh	0.8KG
Packing weight	1.1KG
Accessories list	12V/2A power supply* 1, HDMI /DP line 1,qualification certificate 1, Warranty card *1
After-saleswarranty	3 yearws warranty
