4K60 HDBaseT Multi-Screen Expander with Pixel-to-Pixel Splicing Video Wall Controller

Name: 4K60 HDBaseT Multi-Screen Expander with Pixel-to-Pixel Splicing Video Wall Controller
Brand: Shenzhen Bitvisus Technology Limited
SKU: BIT-MSE-HDBT-4K60-104Pro
Price: 543 USD
Availability: InStock

Product Details

Place of Origin: Guangdong China

Brand Name: Bitvisus

Certification: CE、FCC、GB

Model Number: BIT-MSE-HDBT-4K60-104Pro

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 543$

Packaging Details: 2kg, 36cm*21.5cm*7cm

Delivery Time: 5-8 work days

Payment Terms: T/T

Supply Ability: 1000

Get Best Price

Product Details

Product Description

Ratings & Reviews

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    1 in 4 Projection Fusion Processor, 4K60 HDBaseTout Projection Fusion Processor, 4X1 Pixel Mapping Projection Fusion Processor


Product Name:	BIT-MSE-HDBT-4K60-104Pro	Product Type:	4K60 HDBT Multi-Screen Expander
Feature:	HDBaseT Standard Network Port Output	Function:	Pixel-to-pixel Splicing
Input:	HDMI/DP	Output:	4 Standard HDBaseT Network Output Ports
Warranty:	3 Years	Input Interface:	600MHz
Ouput Interface:	300MHz	Input Resolution:	4K60

Product Name:	BIT-MSE-HDBT-4K60-104Pro
Product Type:	4K60 HDBT Multi-Screen Expander
Feature:	HDBaseT Standard Network Port Output
Function:	Pixel-to-pixel Splicing
Input:	HDMI/DP
Output:	4 Standard HDBaseT Network Output Ports
Warranty:	3 Years
Input Interface:	600MHz
Ouput Interface:	300MHz
Input Resolution:	4K60

Product Description

4K60 HDBaseT Multi-Screen Expander Processor

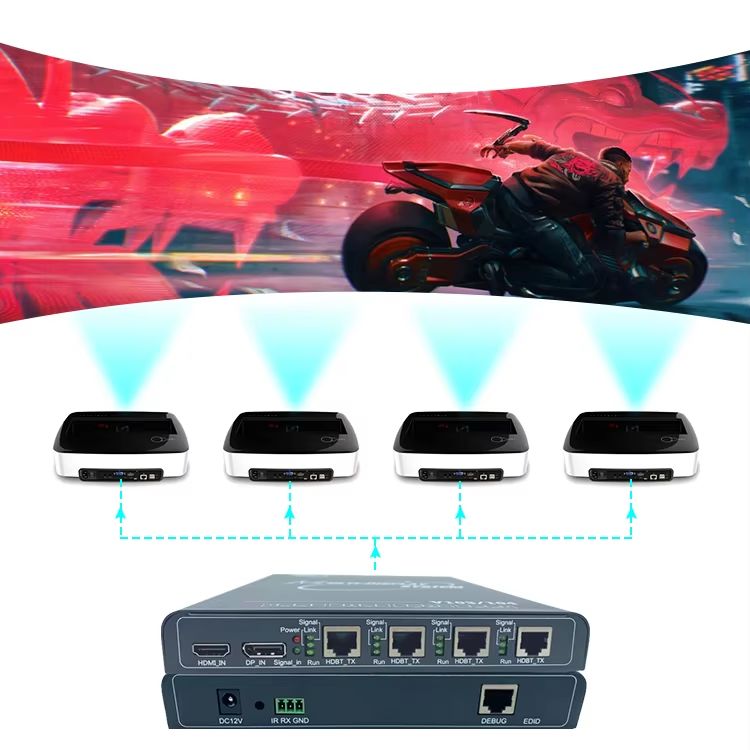

The BIT-4k60-HDBT-104Pro is an industrial-grade high-performance processor specifically designed for multi-channel projection fusion applications. Featuring HDMI/DP input interfaces and HDBaseT standard network port output, this versatile device serves as both a chassis card and multi-screen expander.

Key Features

Ultra-high resolution output supporting up to 4x1920x1200@60Hz/1920x1200x4@60Hz resolution with backward compatibility for lower resolutions
Supports 1xN, Nx1, MxN pixel-to-pixel stitching without stretching or deformation for wider field of view
45nm process high-end programmable FPGA chip with full hardware real-time processing architecture for ultra-fast processing speed without delay
Supports parallel use to ensure real-time display requirements on large screens
Low power consumption with energy-saving design and internal conduction heat dissipation
High reliability without external heat dissipation measures

Product Specifications

Product Name	BIT-MSE-HDBT-4K60-104Pro
Maximum Input Video Pixel Frequency	600MHz
Maximum Output Video Pixel Frequency	300MHz
Input Interface Type	1 HDMI2.0; 1 DP1.2; Supports HDCP2.2 (Choose one)
Output Interface Type	4 standard HDBaseT network output ports
4-Screen Supported Resolutions	4x1920x1200@60Hz; 4x1920x1080@60Hz; 4x1280x800@60Hz; 4x1024x768@60Hz
Factory Default Resolution	3840x2160@60Hz
4x1/1x4 Maximum Supported Resolution	1920x4800@60Hz/7680x1200@60Hz
Input Cable Length	<3 meters
Output Cable Length	70m, 150m optional
Output Network Cable Type	Cat5E/Cat6 and above
Product Dimensions	185mm × 204mm × 28mm (L×W×H)
Package Dimensions	360mm × 215mm × 70mm (L×W×H)
Product Weight	1KG
Package Weight	2KG
Warranty	3 years warranty

Product Features

Frequently Asked Questions

Why Choose Bitvisus?

Own warehouse ensuring order shipment within 48 hours after payment (excluding weekends and holidays)
OEM/ODM services available for custom requirements
Extensive product portfolio including Video Wall Controllers, Multiscreen Expanders, Multiviewers, and Embedded Projector Fusion systems
Proven R&D experience and product quality assurance

Shipment & Payment

Payment Methods: T/T, Visa, PayPal, Western Union, L/C
Shipping Options: DHL, UPS, EMS, FedEx, Air freight, Sea freight

How to Order

Contact us via email, TradeManager, WhatsApp, or Skype with your order requirements
We will provide a proforma invoice based on your specifications
After PI confirmation and payment receipt, we will expedite delivery

Welcome to contact us to consult about the products required by your project!
