Rotating Splicing Processor 2X4 1X4 2X2 Video Wall Controller 3840 X 2160 30hz Large Exhibition Display Screens
In a highly competitive market, the BIT-VWC-409R stands out with its superior performance and future-proof features. It supports a wide range of input and output resolutions, including 4K60, ensuring compatibility with the latest display technologies. Its pure hardware design ensures reliability and ease of use, while its firmware upgrade capability ensures it remains at the forefront. Whether for corporate presentations, creative studios, or educational institutions, the BIT-VWC-409R delivers a competitive edge for high-end multi-screen applications.
Rotating Splicing Processor 2X4 1X4 2X2 Video Wall Controller 3840 X 2160 30hz Large Exhibition Display Screens Features

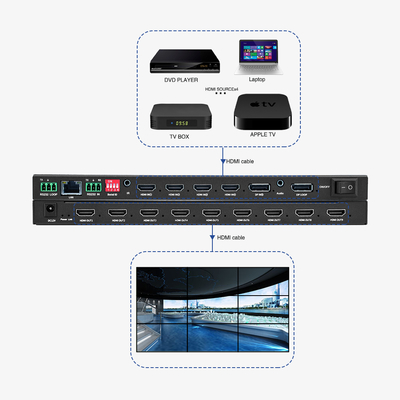

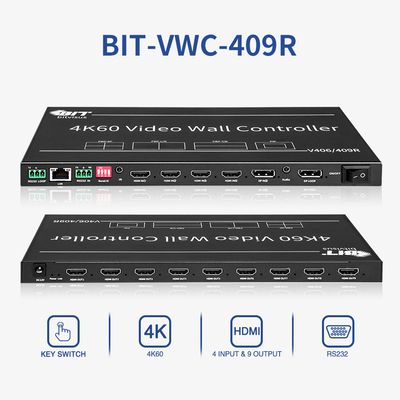

1. BIT-V409R is a new ultra-high-definition rotary splicer launched by Bit Video. Support 4 channels of HDMI input (1 channel of 4K@60Hz,3 channels of 4K@30Hz), 1 channel of DP input (4K@60Hz), 9 channels of output HDMI1080p@60Hz), and 1 channel of DP loop out.

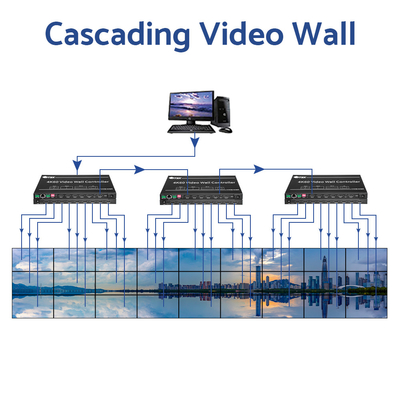

2. A single device, 5 inputs and 9 outputs (compatible with1 input and 9 outputs), can combine multiple splicing modes of looping out.arbitrarily: horizontal screen/vertical screen/Zigzag, and supports large-scale cascading and parallel use in the form
3. The maximum full screen can open 4 windows, and supports multiple windowing modes (single-screen, dual-screen picture-in-picture,dual-screen picture-by-picture,four-screen split), and can arbitrarily assign input source channels to windowed screens.
4. The maximum input support is 3840x2160@60Hz, which is backward compatible. The maximum single output channel supports 1920x1080@60Hz (the output supports customized standard resolution).
5. The input supports 90° rotation of the entire screen (only supported in single-screen mode), and the output supports 180° rotation of the first line (only supported when the splicing mode is two lines).
Rotating Splicing Processor 2X4 1X4 2X2 Video Wall Controller 3840 X 2160 30hz Large Exhibition Display Screens Application scenarios
It is mainly used in industry applications such as ultra-high-definitionvideosurveillance,super-largescreen walls, large advertising screens in stores, and large
exhibition display screens.
Rotating Splicing Processor 2X4 1X4 2X2 Video Wall Controller 3840 X 2160 30hz Large Exhibition Display Screens specifications
| Product name |
BIT-VWC-409R |
| Input source |
Supportcomputers,Androidboxes,game consolesandotherdevices |
| Input maximum video pixel frequency |
600MHz |
| Defaultresolution |
3840x2160@30hz |
| Colordepth |
24bit,RGB444,YUV420 |
| Output Interface |
9xHDMI1.3(≤15m),1xDP1.2 loo pout |
| Resolution |
1920x1080@60hz |
| Audioout |
customiz able |
| Audioand video separation |
Support 3.5mm audio interface |
| Use |
Largescreensplicing |
Rotating Splicing Processor 2X4 1X4 2X2 Video Wall Controller 3840 X 2160 30hz Large Exhibition Display Screens FAQ
Why Choose Bitvisus ?
1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment(weekends and holidays excluded).
2. OEM/ODM offered for our customers.
3.We are one of leading Manufacturer in this field.
How to order ?
1. Pls send email or chat with us via TM, WHATS UP, SKYPE, and let us know your Requirements on order details.
2.We will reply you with proforma invoice based on your order request.
3.Kindly check the PI, and if everything is ok, the goods will be delivered to you asap after we got your payment.
Warranty & After-sale
1.Our products come with 12 months warranty and life-time service support.
2.You can return or exchange your items in any of the following Circumstances; Faulty items, Damaged items or wrong models.
Shipment & payment
1.T/T, Visa, PayPal, Western Union, L/C available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
