8K60 Ultra High Resolution Multi-Screen Expander with Pixel-to-Pixel Display and Industrial-Grade Reliability

Name: 8K60 Ultra High Resolution Multi-Screen Expander with Pixel-to-Pixel Display and Industrial-Grade Reliability
Brand: Shenzhen Bitvisus Technology Limited
SKU: BIT-MSE-8K60-204HD
Price: 500 USD
Availability: InStock

Product Details

Place of Origin: Guangdong China

Brand Name: Bitvisus

Certification: CE、FCC、GB

Model Number: BIT-MSE-8K60-204HD

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 500

Packaging Details: 2KG, 36cm*21.5cm*7cm

Delivery Time: 5-8 work days

Payment Terms: T/T

Supply Ability: 1000

Get Best Price

Product Details

Product Description

Ratings & Reviews

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    8K60 multi-monitor splitter, 2-in 4-out video wall controller, pixel-to-pixel multi-screen expander


Product Name:	BIT-MSE-8K60-204HD	Product Type:	2-in 4-out 8K60 Ultra High Resolution Multi-Screen Expander
Resolution:	8192x2160P60	Feature:	Ultra Clear Processor
Function:	Pixel Per Pixel	Input:	2xHDMI2.1/2xDP 1.4
Output:	4XHDMI 2.0	Input Interface:	1200MHz
Output Interface:	600MHz	Warranty:	3 Years

Product Name:	BIT-MSE-8K60-204HD
Product Type:	2-in 4-out 8K60 Ultra High Resolution Multi-Screen Expander
Resolution:	8192x2160P60
Feature:	Ultra Clear Processor
Function:	Pixel Per Pixel
Input:	2xHDMI2.1/2xDP 1.4
Output:	4XHDMI 2.0
Input Interface:	1200MHz
Output Interface:	600MHz
Warranty:	3 Years

Product Description

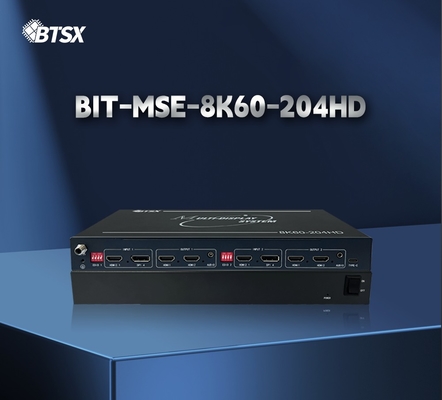

BIT-MSE-8K60-204HD Industrial Multi-Screen Processor

Professional 8K60 Multi-Screen Processor for Industrial-Grade Performance

The BIT-MSE-8K60-204HD is an industrial-grade video wall processor engineered by Bitvisus to meet demanding 4K60 multi-desktop operations and multi-channel display needs. Supporting 2× 8K inputs (HDMI/DP selectable) and 4× 4K60 HDMI outputs, it delivers ultra-clear, fluid visuals across ultra-high-definition large screens or standard monitors.

Key Applications

Command & Control Centers
Multi-Channel 4K60 Projection Systems
Exhibition Halls & Digital Signage
Virtual Reality (VR) Environments
LCD/LED Video Walls

Product Characteristics

Ultra-High Resolution & Flexibility

Dual 8K Inputs: 2× independent 8K ports (HDMI or DP selectable), supporting up to 7680×2160@60Hz per input. Quad 4K Outputs: 4× HDMI 2.0 outputs @3840×2160@60Hz, compatible with all mainstream displays.

Seamless Multi-Screen Control

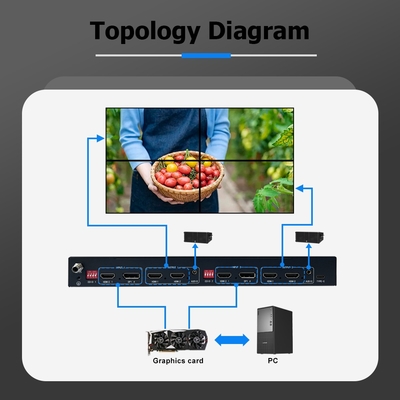

Zero-Latency Splicing: Supports 1×2, 2×2, or 1×4 layouts for pixel-perfect 4K60 video walls without stretching or distortion. Real-Time Processing: All-hardware architecture ensures ultra-fast operation with no lag (no software dependency).

Industrial-Grade Reliability

16KV Super Anti-Static Protection: Withstands harsh electrical environments. Advanced Thermal Design: 18W thermal-conductive material + internal heat dissipation + overheating protection for 24/7 stable operation. Anti-Interference Shielding: Ensures signal integrity in complex setups.

Efficiency & Compatibility

Low-Power Design: Energy-efficient (18W TDP) and eco-friendly. Bitvisus OpenWindow Software: Enables 8K60 multi-window display with drag-and-control flexibility. Parallel Operation Mode: Guarantees uninterrupted large-screen display during maintenance.

Technical Specifications

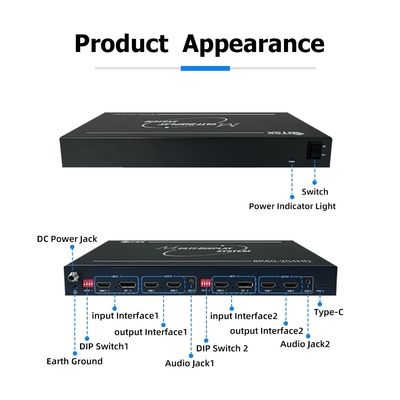

Product Name	BIT-MSE-8K60-204HD
Input Interface Type	2× HDMI 2.1, 2× DP 1.4 (Copper wire ≤ 3M)
HDCP	2.2
Input Interface Maximum Video Pixel Frequency	1200MHz
Maximum Resolution	8192×2160P60
Color Format	RGB444, YUV444, YUV422
Output Interface Type	4× HDMI 2.0 (Copper wire ≤ 10M)
Output Interface Maximum Video Pixel Frequency	600MHz
Output Resolution	4096×2160P60, 3840×2160P60, 3840×2400P60, 2560×1600P60, 2560×1440P60, 1920×1080P120, 1920×1200P120, 1920×1080P60, 1920×1200P60
Color Depth	8bit
Audio	3.5MM audio separation, HDMI audio follow out
Power Supply	DC12V/5A
Power Consumption	20W
Storage/Working Temperature	-10 to 50°C / 0 to 50°C

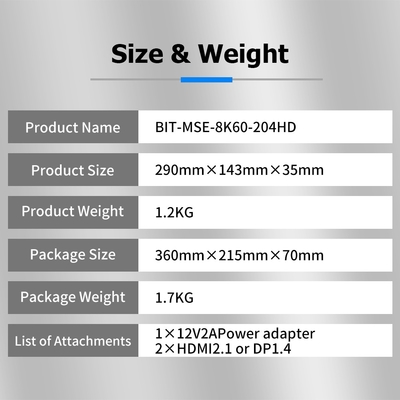

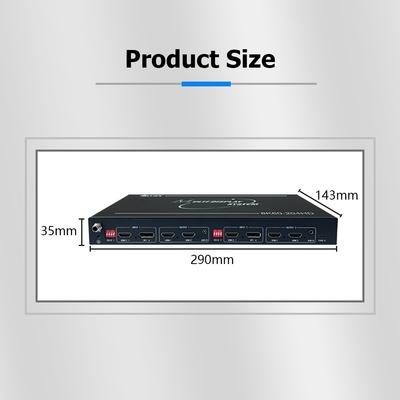

Product Size	290mm × 143mm × 35mm (L×W×H)
Package Size	360mm × 215mm × 70mm (L×W×H)
Product Weight	1.2KG
Packing Weight	1.7KG

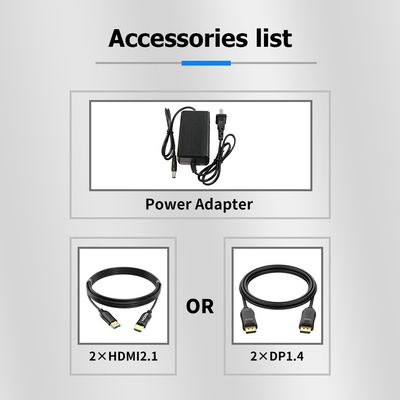

Accessories List	1 × 12V5A power adapter, 2 × HDMI 2.1 cable or DP1.4 cable
Warranty	3-year warranty

Product Features

Frequently Asked Questions

Why Choose Bitvisus?

We maintain our own warehouse to ensure shipping within 48 hours after payment (excluding weekends and holidays). We offer OEM/ODM services and provide a comprehensive range of professional AV products including Video Wall Controllers, Multiscreen Expanders, Multiviewers, and Embedded Projector Fusion systems, demonstrating our extensive R&D experience and product quality assurance.

Shipment & Payment

We accept T/T, Visa, PayPal, Western Union, and L/C payments. Shipping options include DHL, UPS, EMS, FedEx, Air freight, and Sea freight to meet your logistics requirements.

How to Order?

Contact us via email or chat platforms (TM, WhatsApp, Skype) with your order requirements. We will provide a proforma invoice for your review. Once payment is confirmed, we will expedite delivery of your order.
