4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder
4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder

Large Image :  4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder

Product Details:
Place of Origin: Guangdong China
Brand Name: Bitvisus
Certification: CE、FCC、GB
Model Number: BIT-Dec64-09
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 858
Packaging Details: 3.7KG, 54cm*29cm*11cm
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 1000
Contact Now

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder

Description
Product Name: BIT-Dec64-09 Product Type: 4K60 Decoding And Splicing Processor
Resolution: Decoding Of 64xD1@30fps/16x1080p@30fps H.265/1.264 Feature: Display The Video Of 64-channel IPC
Function: Decoding And Splicing Processor Input: 1 X Gigabit Ethernet Ports
Output: 9xHDMI 1.4,1 XHDMI 1.4(Loop Decoding Performance: Decoding Of 64xD1@30fps/16x1080p@30fps H.265/1.264
Output Interface: 154MHz Warranty: 3 Years
Highlight:

4K60 video wall controller

,

Gigabit Ethernet NVR decoder

,

IP stream security monitoring decoder

Product Overview

4K60 Decoding and splicing processor

⇒Supports 9-channel HDMI outputs and 1-channel HDMI loop-through output;
⇒A single device offers 9-channel HDMl outputs and allows for various splicing modes with arbitrary combinations, such as landscape orientation, portrait orientation, and quadrilateral arrangement;
⇒It features a low-power, energy - saving and environment - friendly design. Within ternal conduction cooling, no external cooling measures are required, ensuring extremely high reliability;
⇒Equipped with a high - performance SoC chip, it provides a high - performance,secure, highly integrated and easily developable embedded high - definition intelligent NVR solution;
⇒Supports decoding of64xD1@30fps H.265/1.264 or 16x1080p@30fpsH.265/H.264.;


⇒Supports Gigabit Ethernet ports;
⇒Supports Web control, which is easy to use and convenient to operate. Operations such as window roaming, window splitting and window merging can be quickly;
⇒Supports batch import and export of IPC, facilitating the rapid deployment of devices;
⇒Supports saving of pre-set plans and plan polling, enabling quick switching of IPC display schemes;
⇒Supports subtitle settings;
⇒Supports setting the background color of the output video.;
⇒Supports positioning IPC on the electronic map and echoing IPC video.


⇒Welcome to contact us to consult about the products required by your project!

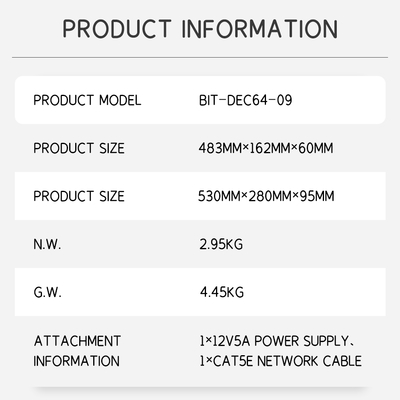

Product Specifications
Product Name BIT-Dec64-09
Input Port 1 x Gigabit Ethernet ports

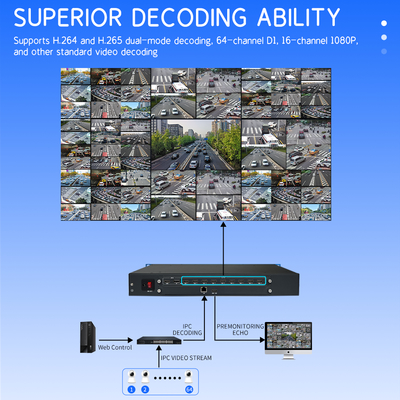

Decoding performance 64xD1@30fps H.265/H.264 decode or 16x1080p@30fpsH.265/H.264 decode
Output port 9xHDMI 1.4,1 xHDMI 1.4(Loop)
Output resolution 1920x1080p60,1920x1200p60
Maximum pixel clock frequeney of output 154MHz
Color depth 8bit
Control method Web
Power supply voltage 12V
Power consumption 26W
Operating temperature -10~70°C/0~70°C

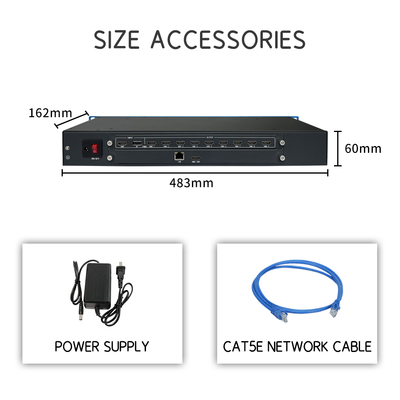

Product size 483mm (Length)x162mm (Width)x 60mm (Height)
Package size 530mm (Length)x 280mm (Width) x 95mm (Height)
Product weigh 3KG
Packing weight 4.6KG
Accessories list 1 x 12V 5A power adapter, 1 x CAT5E Ethernet cable
After-saleswarranty After-sales service 3-year warranty


Features at a Glance

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 0

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 1

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 2

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 3

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 4

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 5

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 6

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 7

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 8


4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 9

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 10

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 11


Company Profile

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 12

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 13

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 14

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 15

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 16

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder 17


FAQ


Why Choose Bitvisus ?

1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment(weekends and holidays excluded).
2. OEM/ODM offered for our customers.
3.We have various pruduct that may suit for you, such as Video Wall controller, Multiscreen Expander, Multiviewer, Embeded Projector Fusion and so on, which proves that our company has sufficient R&D experience and product quality assurrance.
Shipment & payment
1.T/T, Visa, PayPal, Western Union, L/C available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
How to order?
1. Please send us an email or chat with us via TM, WHATS UP, SKYPE and let us know your requirements for order details.
2. We will provide a proforma invoice to you based on your order requirements.
3. Please check the PI, if everything is OK, we will deliver the goods to you as soon as possible after receiving your payment.

Tag:

Video Wall Matrix Switcher,

HD Video Wall Processor,

Audio Video Processing Unit
