4K60 Resolution Adaptive Video Splitter 8 Inputs 1 Output Multi-viewer Professional Grade CCTV Monitoring Picture Synthesizer

Large Image : 4K60 Resolution Adaptive Video Splitter 8 Inputs 1 Output Multi-viewer Professional Grade CCTV Monitoring Picture Synthesizer

Product Details:

Place of Origin:	Guangdong China
Brand Name:	Bitvisus
Certification:	CE、FCC、GB
Model Number:	BIT-MV-4K60-801

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	458
Packaging Details:	2KG, 36cm21.5cm7cm
Delivery Time:	5-8 work days
Payment Terms:	T/T
Supply Ability:	1000

Contact Now

4K60 Resolution Adaptive Video Splitter 8 Inputs 1 Output Multi-viewer Professional Grade CCTV Monitoring Picture Synthesizer

Description

Product Name:	BIT-MV-4K60-801	Product Type:	4K60 8 Pictures Multi-viewer
Feature:	Ultra-high Definition Eight-screen Splitter	Function:	8 In 1 Out, Can Be Combined With A Variety Of Split Mode
Input:	4HDMI 2.0 , 2DP 1.2,4*HDMI 1.3	Output:	1*HDMI 2.0
Ouput Resolution:	4K60	Input Resolution:	IN 1~4 :38402160P60 IN 5~6 :19201080P60
Warranty:	3 Years
Highlight:	4K60 video splitter multi-viewer , 8-input CCTV monitoring synthesizer , professional-grade video wall controller

Product Overview

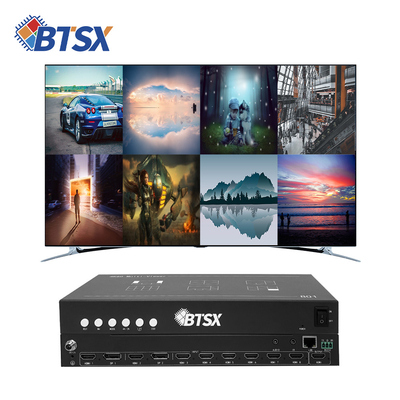

4K60 8 pictures multi-viewer

⇒Supports 4-channel 4K60 inputs, of which 2-channel HDMI and DP are bi-optional, as well as 4-channel 1080P inputs, ensuring clear images and rich details:;⇒Support 4K60, 1080P60 output, compatible with a variety of display devices and resolution equirements, can be flexibly adjusted according to specific application requirements and cquipment configuration, providing more options and adaptability;

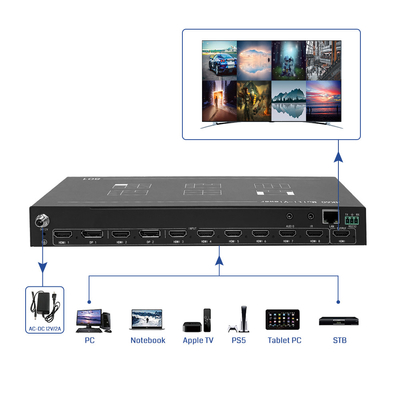

⇒Capable of displaying 8 input signals, displayed on a single display device,realizing multi-screen display, enhancing work efficiency and monitoring capability;
⇒Supporting cach window for seamless switching of input signals without brushing black, enhancing user experience, optimizing viewing experience and reducing operational interference;
⇒With a variety of segmentation modes to meet the needs of different scenarios,flexible selection according to the actual situation;
⇒Support key, remote control, RS232, Web, control, intuitive control interace and operation mode, simplify the setting process;
⇒With overheating protection and anti-interference design, the use of 18Wthermalconductivity materials, internal heat dissipation, to ensure that the device runsstably for a long time, suitable for long-term use in a variety ofenvironments.


⇒Welcome to contact us to consult about the products required by your project!


Product Specifications


Product Name
BIT-MV-4K60-801

Input interface type
IN 1-4: 4xHDMI2.0,2xDP 1.2 ; IN 5-8: 4xHDMI 1.3

Input interface maximum video pixel frequency
600MH

Input resolution
IN 1~4 : 3840×2160P60; IN 5~6 : 1920×1080P60

Interface Protocol
HDCP 2.2 , HDCP 1 . 2

Input color depth
24bit

Output interface type
1×HDMI 2.0

Output interface maximum video pixel frequency
600MHz

Output resolution
3840×2160P60,3840×2160P30,1920×1080P60

Color depth
8bit

Color format
RGB444 , YUV444

Audio
HDMI Audio Follow - On, 3.5mm Audio Separation

Control Method
Remote Control, Pushbutton, RS232 , Web

Power Supply
12V2A

Power comsumption
15 W

Storage/working temperature
- 10 to 50 º C/0 to 50 º C

Lugs
Small lug, U1 lug, optional

Product size
Length×width×height:290mm×143mm×35mm

Package size
Length×width×height:360mm×215mm×70mm

Product weigh
1.2KG

Packing weight
1.8KG

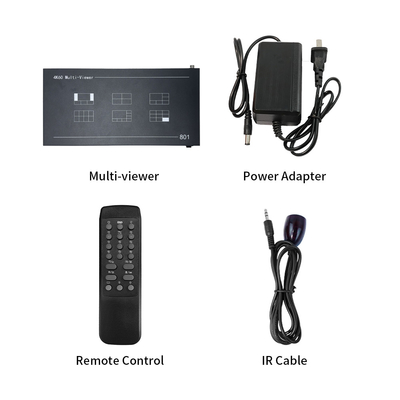

Accessories list
1 × 12V2A power adapter, 1 × IR header, 1 × remote control, 1 × Phoenix terminal, 2 × hanging ear (optional)

After-saleswarranty
After-sales service 3-year warranty


Features at a Glance


Company Profile

FAQ
Why Choose Bitvisus ?
1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment(weekends and holidays excluded).
2. OEM/ODM offered for our customers.
3.We have various pruduct that may suit for you, such as Video Wall controller, Multiscreen Expander, Multiviewer, Embeded Projector Fusion and so on, which proves that our company has sufficient R&D experience and product quality assurrance.
Shipment & payment
1.T/T, Visa, PayPal, Western Union, L/C available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
How to order?
1. Please send us an email or chat with us via TM, WHATS UP, SKYPE and let us know your requirements for order details.
2. We will provide a proforma invoice to you based on your order requirements.
3. Please check the PI, if everything is OK, we will deliver the goods to you as soon as possible after receiving your payment.
