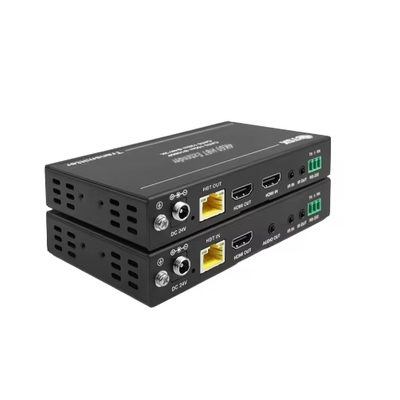

4K60 150m HDBaseT Extender Support One Loop Out Audio Extraction HDMI Extender IR/RS-232/CEC Control Cat6 HDMI Extender

Large Image : 4K60 150m HDBaseT Extender Support One Loop Out Audio Extraction HDMI Extender IR/RS-232/CEC Control Cat6 HDMI Extender

Product Details:

Place of Origin:	Guangdong China
Brand Name:	Bitvisus
Certification:	CE、FCC、GB
Model Number:	BIT-Ex-HDBT-4K60-150C

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	152
Packaging Details:	2KG, 37cm24cm11cm
Delivery Time:	5-8 work days
Payment Terms:	T/T
Supply Ability:	1000

Contact Now

4K60 150m HDBaseT Extender Support One Loop Out Audio Extraction HDMI Extender IR/RS-232/CEC Control Cat6 HDMI Extender

Description

Product Name:	BIT-Ex-HDBT-4K60-150C	Product Type:	HDBT HD Video Network Extender
Feature:	HDBT Extend To 150m/120m	Function:	HDBT Extend
TX Input:	1 XHDMI	TX Output:	CAT 5e/6
RX Input:	CAT 5e/6	RX Output:	1 XHDMI
Supported Resolution:	4Kx2KP60	Warranty:	3 Years
Highlight:	4K60 HDMI Extender with Audio Extraction , HDBaseT Extender with IR Control , Cat6 HDMI Extender with RS-232

Product Overview

4K EDID KVM USB Fiber Optic HDMI Extender

☞Compatible with HDMI 2.0b, HDCP 2.2/HDCP 1.4 and DVl 1.0;☞Support 18Gbps bandwidth;
☞The input and output extension distance can reach 120 meters / 150 meters and the supported resolution can reach 4K2K/1080P;
☞Support 1 HDMI loop output (transmitter);
☞Supports de-embedding source device audio to analog stereo output(receiving side);
☞With bi-directional IR, RS-232 and CEC pass-through;
☞Supports HDR, HDR 10+, Dolby Vision and HLG functions;
☞Support PoC (Power over Cable) function;
☞Reasonable design, easy to install.

⇒Welcome to contact us to consult about the products required by your project!

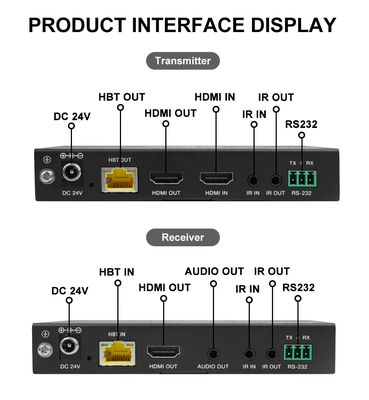

Product Specifications


Input

Transmitter(TX)
1 xHDMI IN [ Type A,19- pin female];1 x SERVICE[ Mini-USB ,upgrade port]

Receiver(RX)
1 xHDMI IN [ Type A,19- pin female];1 x SERVICE[ Mini-USB ,upgrade port]

Output


Transmitter(TX)
1 xHDMI OUT [ Type A,19- pin female];1 x HDBT OUT[ RJ 45, 8- pin female]

Receiver(RX)
1xHDMI OUT[ Type A,19-pin female]

Audio
1 x AUDIO OUT[3.5 mm Stereo Mini- jack ]

Other







Supported resolution
Supported resolution can reach 4K2K/1080P

Input color depth
RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

Transmission bandwidth
18Gbps

Resolution/ Distance
4K*2K, 120 meters

1080P, 150 meters

L /R audio forrmat
PCM 2.0

Power supply


Input: AC 100-240V 50/60Hz

Output : DC 24 V/1 A (with locking terminal)

Specification

Operating temperature
0'C-40'C/32F-104'F

After-salesservice
1 year warranty


Features at a Glance

Company Profile

FAQ
Why Choose Bitvisus ?
1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment(weekends and holidays excluded).
2. OEM/ODM offered for our customers.
3.We have various pruduct that may suit for you, such as Video Wall controller, Multiscreen Expander, Multiviewer, Embeded Projector Fusion and so on, which proves that our company has sufficient R&D experience and product quality assurrance.
Shipment & payment
1.T/T, Visa, PayPal, Western Union, L/C available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
How to order?
1. Please send us an email or chat with us via TM, WHATS UP, SKYPE and let us know your requirements for order details.
2. We will provide a proforma invoice to you based on your order requirements.
3. Please check the PI, if everything is OK, we will deliver the goods to you as soon as possible after receiving your payment.
