8K 1 in 15 Out Multi - Screen Content Display Pixel-to-pixel Splicing Multi-Screen Viewer 4x3 5x3 6x2 Multi-Monitor Splitter

8K 1 in 15 Out Multi - Screen Content Display Pixel-to-pixel Splicing Multi-Screen Viewer 4x3 5x3 6x2 Multi-Monitor Splitter
8K 1 in 15 Out Multi - Screen Content Display Pixel-to-pixel Splicing Multi-Screen Viewer 4x3 5x3 6x2 Multi-Monitor Splitter 8K 1 in 15 Out Multi - Screen Content Display Pixel-to-pixel Splicing Multi-Screen Viewer 4x3 5x3 6x2 Multi-Monitor Splitter 8K 1 in 15 Out Multi - Screen Content Display Pixel-to-pixel Splicing Multi-Screen Viewer 4x3 5x3 6x2 Multi-Monitor Splitter 8K 1 in 15 Out Multi - Screen Content Display Pixel-to-pixel Splicing Multi-Screen Viewer 4x3 5x3 6x2 Multi-Monitor Splitter 8K 1 in 15 Out Multi - Screen Content Display Pixel-to-pixel Splicing Multi-Screen Viewer 4x3 5x3 6x2 Multi-Monitor Splitter 8K 1 in 15 Out Multi - Screen Content Display Pixel-to-pixel Splicing Multi-Screen Viewer 4x3 5x3 6x2 Multi-Monitor Splitter

Large Image :  8K 1 in 15 Out Multi - Screen Content Display Pixel-to-pixel Splicing Multi-Screen Viewer 4x3 5x3 6x2 Multi-Monitor Splitter

Product Details:
Place of Origin: Guangdong China
Brand Name: Bitvisus
Certification: CE、FCC、GB
Model Number: BIT-VWC-8K-115Pro
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1072
Packaging Details: 3KG, 54cm*32.5cm*15.5cm
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 1000
Contact Now

8K 1 in 15 Out Multi - Screen Content Display Pixel-to-pixel Splicing Multi-Screen Viewer 4x3 5x3 6x2 Multi-Monitor Splitter

Description
Product Name: BIT-VWC-8K-115Pro Product Type: 8K 1 In 15 Out Splicing Processor
HDCP Version: 2.2 Feature: High Resolution Intput
Function: Pixel-to Pixel Stitching Input: 1 XHDMI 2.1, 1 XDP 1.4,(copper Cable S 3 Meters)
Output: 15xHDMI 1.4 (copper Cable ≤ 10 Meters) Input Interface: 1200MHz
Output Interface: 165MHz Warranty: 3 Years
Highlight:

8K multi-screen display controller

,

Pixel-to-pixel splicing video wall

,

Multi-monitor splitter with warranty

Product Overview

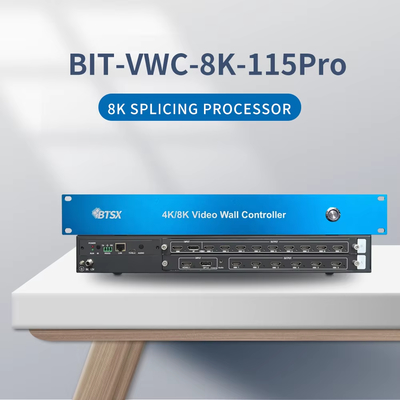

8K 1 in 15 out Splicing Processor

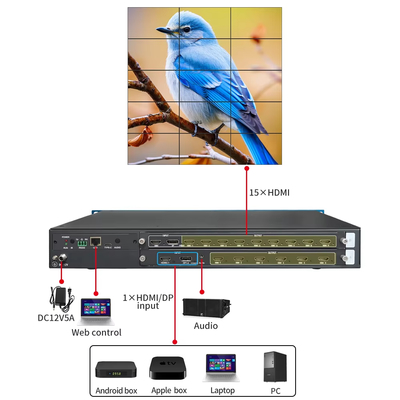

⇒Supports one 8K signal input, with the option to choose between HDMI 2.1 and DP 1.4, offering diverse interface options to ensure clear images with rich details;
⇒Supports 1080P60 and 1200P60 output, compatible with a variety of display devices and resolution requirements, It can be flexibly adjusted according to specific application needs and equipment configurations, providing more choices and adaptability;
⇒Ultra-high resolution support, with input up to 5760 x 6000P30;
⇒Supports 1 x N, N x 1, and M x N point-to-point splicing without stretching or distortion, offering a wider field of viewP;
⇒Supports EDID management;
⇒Support Serial Port RS232 Control, Network Port WEB Control;
⇒Support Bezel setup and CEC control;
⇒Supports parallel use to meet the real-time display needs of large screens;
⇒When used with Bitvisus windowing software, it can achieve multi-picture display in 8K;
⇒Low power consumption and energy-saving design, with overheat protection and anti-interference design, It uses materials with a thermal conductivity of 18W for internal heat dissipation, ensuring long-term stable operation of the equipment and suitability for long-term use in various environments;
⇒Industrial-grade design with thickened 6-layer PCB boards and 16KV strong anti-static capability, providing superior product stability;
⇒Utilizes high-end programmable FPGA chips with 28nm process technology and a full hardware real-time processing architecture, ensuring ultra-fast processing speed without delay.

⇒Welcome to contact us to consult about the products required by your project!



Product Specifications

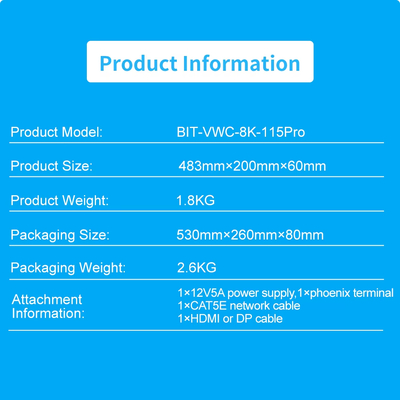

Product Name BIT-VWC-8K-115Pro
HDCP HDCP2.2
Input interface type 1 xHDMI 2.1, 1 xDP 1.4,(copper cable s 3 meters)
Input interface maximum video pixel frequency 1200MHz
Input resolution
2x4:7680x2160P60/7680x2400P60
3x3:5760x3240P60/5760x3600P30
3x4:7680x3240P30/7680x3600P30
4x3:5760x4320P30/5760x4800P30
5x3:5760x5400P30/5760x6000P30
Input color format RGB444,YUV444,YUV422,YUV420, 8bit
Output interface type 15xHDMI 1.4 (copper cable < 10 meters)
Output interface maximum video pixel frequency 165MHz
Output resolution 1920x1200P60,1920x1080P60
Audio Audio Output
Control Mode Serial Port RS232 Control, Network Port WEB Control
Power Supply DC 12V5A
Power comsumption 48 W
Storage/working temperature - 10 to 50 º C/0 to 50 º C
Product size LxWxH: 483 mm × 164 mm × 60 mm
Package size LxWxH:530 mm × 260 mm × 80 mm
Product weigh 1.8KG
Packing weight 3KG
Accessories list 1x12V5A Power Adapter, 1xHDMl Cable or DPCable,1-meter Ethernet Cable,lxPhoenix terminal
After-saleswarranty 3 yearws warranty
