8K/4K/2K Media Playback Embedded Fusion Processor 1 in 15 Out Projection Fusion Device 3x4 1x15 3x5 Embedded Projector Fusion
8K/4K/2K Media Playback Embedded Fusion Processor 1 in 15 Out Projection Fusion Device 3x4 1x15 3x5 Embedded Projector Fusion
Basic Properties
Country Of Origin
Guangdong China
Brand Name
Bitvisus
Certificate
CE、FCC、GB
PRODUCT MODEL
BIT-VJ-U1-115Pro
Trading Properties
MOQ
1
Unit Price
1715
Payment Method
T/T
Supply Capacity
1000
Product Summary
Product Overview 8K Magic Special-shaped Splicer ⇒15 screens can be spliced at any angle and in any shape; ⇒1 HDM12.0 capture input, 15 HDMll.3 outputs; ⇒Support 8K60 (7680x4320P60Hz) video decoding (corresponding to16x1080P60 video decoding); ⇒Built-in 64G memory to store material; ⇒Quickly cut ...
Product Details
Highlight:
8K media playback fusion processor
,4K projector fusion device
,video wall controller 15 output
Product Name:
BIT-VJ-U1-115Pro
Product Type:
8K Magic Special-shaped Splicer
Feature:
15 Screens Can Be Spliced At Any Angle And In Any Shape
Function:
Pixel-to-pixel, Special-shaped Splicing
Input:
1xHDMI2.0
Output:
15xHDMI1.3
Input Resolution:
4K60
Ouput Resolution:
1080P60
Video Format:
MP4,AVI,3GP,MKV
Warranty:
3 Years
Product Description
Product Overview
8K Magic Special-shaped Splicer

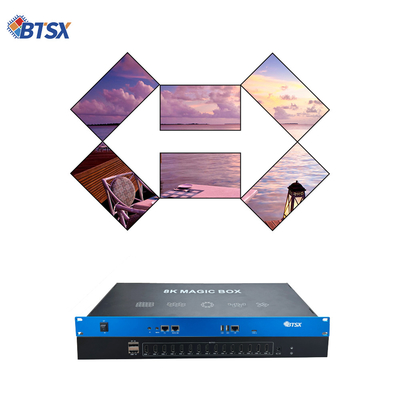

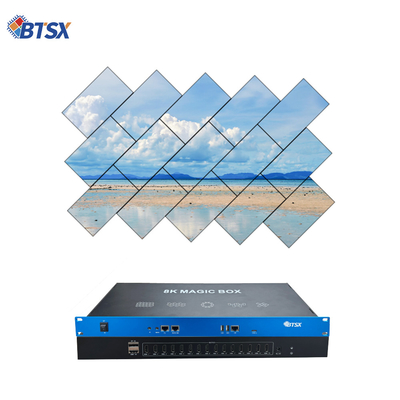

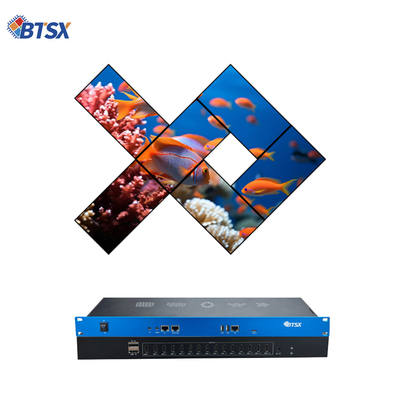

⇒15 screens can be spliced at any angle and in any shape;
Product Specifications

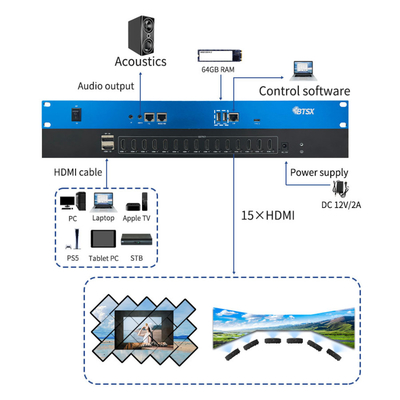

⇒1 HDM12.0 capture input, 15 HDMll.3 outputs;
⇒Support 8K60 (7680x4320P60Hz) video decoding (corresponding to16x1080P60 video decoding);
⇒Built-in 64G memory to store material; ⇒Quickly cut video files in seconds;
⇒Clip slicing function, clip screen can be edited and selected at will;
⇒Supports multi-layer clip overlay and clip picture-in-picture;
⇒Supports blind plugging of outputs;
⇒Support RS232/RS485/TTL multiple control protocols and interfaces (serialcommand customizationlearning function);
⇒Supports external USB flash drive copy + playback function (up to l USB flash drive); ⇒Support network casting screen back to monitor function;
⇒Built-in 8 players to support simultaneous playback of 6 different videos and 2 groups of different pictures;
⇒Support for scrolling caption function;
⇒Support for edge effects functions (edge indentation, blur level, matte level,zoom, mirror).
⇒Welcome to contact us to consult about the products required by your project!
| Product Name | BIT-VJ-U1-115Pro |
| Input interface type | 1xHDMI2.0 |
| Input Thread length | 4K60 :5m ; 1080P60:10m |
| Output Thread length |
|
| Output interface type | 15x HDMI1.3 |
| Sound frequency | 3.5mm audio splitter connector |
| Control method | PC host computer/serial port protocol |
| Control protocols | RS232/RS485/TTL |
| Heteromorphic adjustment | be in favor of |
| Window layout | Arbitrary windowing, stacking, roaming |
| Random access memory (RAM) | 64G |
| Power Supply | DC 12V5A |
| Power comsumption | ≤28W |
| Storage/working temperature | ≤60℃ |

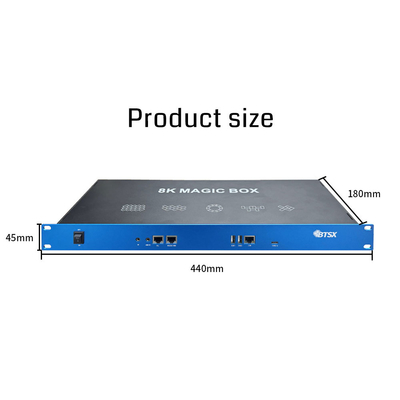

| Product size | Length×width×height:440mm×180mm×45mm |
| Package size | Length×width×height:540mm×290mm×110mm |
| Housing Material | Aluminum (chemistry) |
| Packing weight | 2KG |

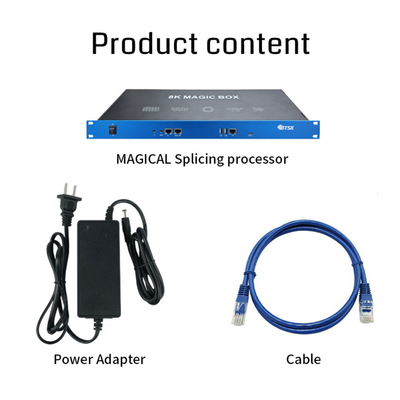

| Accessories list | 12V5A Power Supply*1, Network Cable*1, Certificate of Conformity* 1, Warranty Card*1 |
| After-saleswarranty | 3 yearws warranty |
