Highlight:
4K30 HDMI fiber optic extender
, 10KM zero latency fiber extender
, KVM over fiber extender

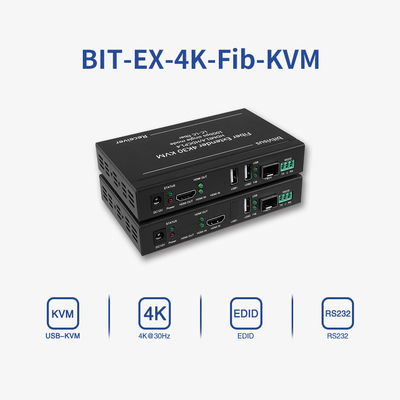

Product Name: |
BIT-Ex-Fib-4K-KVM |
Product Type: |
4K Fiber Optic Extender |
Feature: |
Fiber Optic Extend To 10KM |
Function: |
Fiber Optic Extend |
TX Input: |
1 XHDMI 1.4,1 XUSB1.0,1 XRS232 |
TX Output: |
1 X Fiber |
RX Input: |
1 X Fiber |
RX Output: |
1 XHDMI 1.4,1 XUSB1.0,1 XRS232 |
Supported Resolution: |
4096x2160P30 |
Warranty: |
3 Years |
Product Overview
Fiber Optic HDMI Extender
Adopting the industry's most advanced FPGA chips, it surpasses the performance of peer video processing equipment and adapts to the rapidly evolving technological needs. ☞4K Ultra HD: Maximum resolution up to 4096x2160@30Hz,backwards compatible.
Ensuring clear image quality; ☞Long-Distance Extension: Signal integrity can be maintained,Zero Latency,
uncompressed. The longest transmission distance can support up to 10 KM ; ☞High Bandwidth: 10 Gbps,supports high data transfer rate,suitable for high speed
transmission of large volume data; ☞EDID Management: Lock and pass-through function; ☞Multi-Function Interface: Such as HDMI/HDCP1.4,USB etc; ☞Safe and Reliable: Support HDCP,ensuring the safety of data transmission;
☞USB Passthrough: KVM functions such as keyboard and mouse; ☞Bidirectional RS232 Communication: Enables remote two-way data transmission for
enhanced control and monitoring(Note: RS232 and USB, choose one to use)
☞Plug & Play: Compact form factor,Pure hardware,rugged design,easy to install and
use,no software drivers required; ☞Strong Anti-Interference: Unaffected by electromagnetic interference,ensuring stable
signals; ☞Eco-friendly and energy-efficient:
Low power consumption design with CE,RoHS,FCC certification.

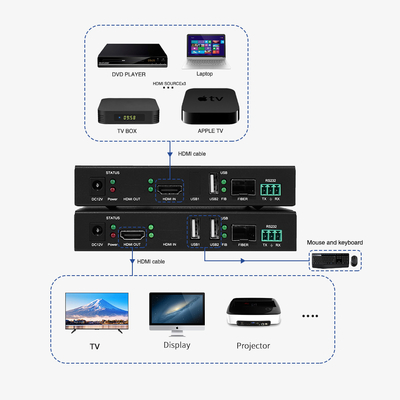

Typical application
Remote Monitoring Systems, Digital Signage, Medical Imaging, Performance Venues,
Movie Theaters, Stadiums, Large Meeting Rooms, Lecture Halls, etc.
⇒Welcome to contact us to consult about the products required by your project!
Product Specifications
| Product Name |
BIT-Ex-Fib-4K-KVM |
| Input interface type |
HDMI 2.0 |
| HDMI resolution |
4K/60Hz |
| Support video format |
3D
|
| Support video color format |
24/30/36 bit deep color |
| Sound frequency |
3.5mm audio splitter connector |
| Max bandwidth |
600MHz |
| Max baud rate |
6Gbps |
| Input cable distance |
≤8m AWG26 HDMI standard cable(4K/30HZ); ≤3m 2.0 HDMI standard cable(4K/60HZ); |
| Output cable distance |
≤8m AWG26 HDMI standard cable(4K/30HZ); ≤5m 2.0 HDMI standard cable(4K/60HZ); |
| Max working current |
350mA |
| Power adapter format |
Input AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A |
| Operating Temperature range |
(-10 to +55℃) |
| Dimension (L x W x H) |
136x80x22 (mm) |
| Weight |
118g |
| After-saleswarranty |
3 yearws warranty |
