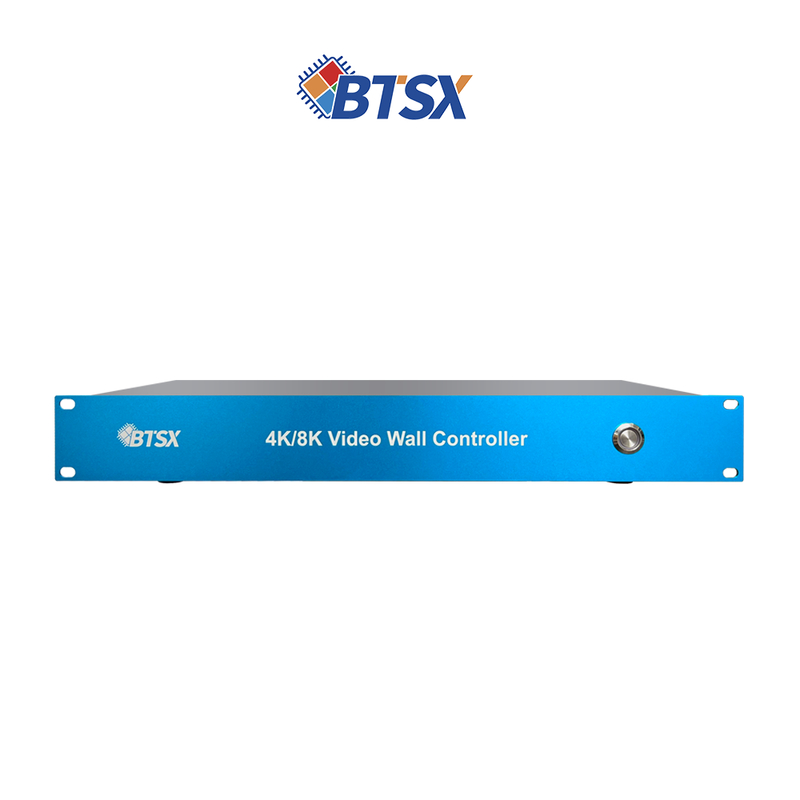

8K Video Wall Controller with 1920×1200P60 Output Wide Compatibility and Bezel Compensation

Name: 8K Video Wall Controller with 1920×1200P60 Output Wide Compatibility and Bezel Compensation
Brand: Shenzhen Bitvisus Technology Limited
SKU: BIT-VWC-8K-115Pro
Price: 2915 USD
Availability: InStock

Product Details

Place of Origin: Guangdong China

Brand Name: Bitvisus

Certification: CE、FCC、GB

Model Number: BIT-VWC-8K-115Pro

Payment & Shipping Terms

Minimum Order Quantity: 1Pieces

Price: 2915USD

Packaging Details: 530mm×260mm×80mm

Delivery Time: 5-8 work days

Payment Terms: L/C,D/P,T/T

Supply Ability: 1000

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    4K 8K video wall controller, 15-channel HDMI video wall controller, 5x3 video wall splicing controller


Product Name:	BIT-VWC-8K-115	Input Interface:	Supports HDCP2.2
IInput Maximum Pixel Clock Rate:	1200MHz	Input Color Format:	RGB444、YUV444、YUV422、YUV420
Output Interface:	15×HDMI 1.4 (copper Cable ≤ 10 Meters)	Output Maximum Pixel Clock Frequency:	165MHz
Output Resolution:	1920×1200P60、1920×1080P60	Color Depth:	8bit
Audio:	Audio Output	Power Source:	220V

Product Name:	BIT-VWC-8K-115
Input Interface:	Supports HDCP2.2
IInput Maximum Pixel Clock Rate:	1200MHz
Input Color Format:	RGB444、YUV444、YUV422、YUV420
Output Interface:	15×HDMI 1.4 (copper Cable ≤ 10 Meters)
Output Maximum Pixel Clock Frequency:	165MHz
Output Resolution:	1920×1200P60、1920×1080P60
Color Depth:	8bit
Audio:	Audio Output
Power Source:	220V

Product Description

4K 8K Video Wall Controller with 15-Channel HDMI Output

Pricing Information

The displayed price is for samples. For business cooperation pricing, please use the chat button or request a quote.

Product Overview

The BIT-VWC-8K-115Pro is a professional-grade 8K video wall controller serving as the core device for display wall systems. This high-performance processor supports ultra-high-definition 8K input with flexible connectivity options and delivers exceptional multi-screen display capabilities.

Key Features

Supports 1×8K input (5760×6000@30Hz) via optional HDMI 2.1 or DP 1.4
15× HDMI outputs (1920×1200P60/1920×1080P60)
Flexible video wall configurations (1×N, N×1, M×N)
True point-to-point lossless display without distortion
Dual control options: RS232 serial port and web interface
Advanced features: EDID management, CEC control, bezel compensation
28nm FPGA chip architecture for zero-latency performance
Industrial-grade reliability with 6-layer PCB and 16kV ESD protection
Wide operating temperature range (-10°C to 50°C)
Professional video wall management software support

Technical Specifications

Input	1× 8K signal (HDMI 2.1 or DP 1.4)
Output	15× HDMI (1920×1200P60)
Processing	28nm FPGA chip, hardware-based architecture
Control	RS232 serial port, web interface
Protection	16kV anti-static, overheating protection
Operating Temp	-10°C to 50°C

Applications

Ideal for ultra-high-resolution displays, multi-screen visualization, 4K projection systems, exhibitions, virtual simulations, theaters, advertising walls, LCD/LED video walls, command centers, conference rooms, and interactive multi-screen environments.

Advanced Capabilities

Supports windowing and roaming features for enhanced display flexibility
Enables multiple device parallel operation
Low power consumption with energy-saving design
Anti-interference protection for stable operation
