4K60 Video Wall Processor 9 HDMI Output 64-Channel Decoding
4K60 Video Wall Processor 9 HDMI Output 64-Channel Decoding
Basic Properties
Country Of Origin
Guangdong China
Brand Name
Bitvisus
Certificate
CE、FCC、GB
PRODUCT MODEL
BIT-Dec64-09
Trading Properties
MOQ
1
Unit Price
858
Payment Method
T/T
Supply Capacity
1000
Product Summary
4K 64 Opening Windows 9 HDMI Output Decoder IP Stream Input Security Monitoring Decoder 9 Screen Splitting Video Wall Processor Product Overview Supports 9-channel HDMI outputs and 1-channel HDMI loop-through output Single device offers 9-channel HDMI outputs with flexible splicing modes (landscape, ...
Product Details
Highlight:
4K60 video wall processor
,9 HDMI output video wall controller
,64-channel decoding video wall processor
Product Name:
BIT-Dec64-09
Product Type:
4K60 Decoding And Splicing Processor
Resolution:
Decoding Of 64xD1@30fps/16x1080p@30fps H.265/1.264
Feature:
Display The Video Of 64-channel IPC
Function:
Decoding And Splicing Processor
Input:
1 X Gigabit Ethernet Ports
Output:
9xHDMI 1.4,1 XHDMI 1.4(Loop)
Decoding Performance:
Decoding Of 64xD1@30fps/16x1080p@30fps H.265/1.264
Output Interface:
154MHz
Warranty:
3 Years
Product Description
4K 64 Opening Windows 9 HDMI Output Decoder IP Stream Input Security Monitoring Decoder 9 Screen Splitting Video Wall Processor
Product Overview
- Supports 9-channel HDMI outputs and 1-channel HDMI loop-through output
- Single device offers 9-channel HDMI outputs with flexible splicing modes (landscape, portrait, quadrilateral arrangements)
- Energy-efficient design with internal conduction cooling for high reliability
- High-performance SoC chip for secure, integrated HD intelligent NVR solution

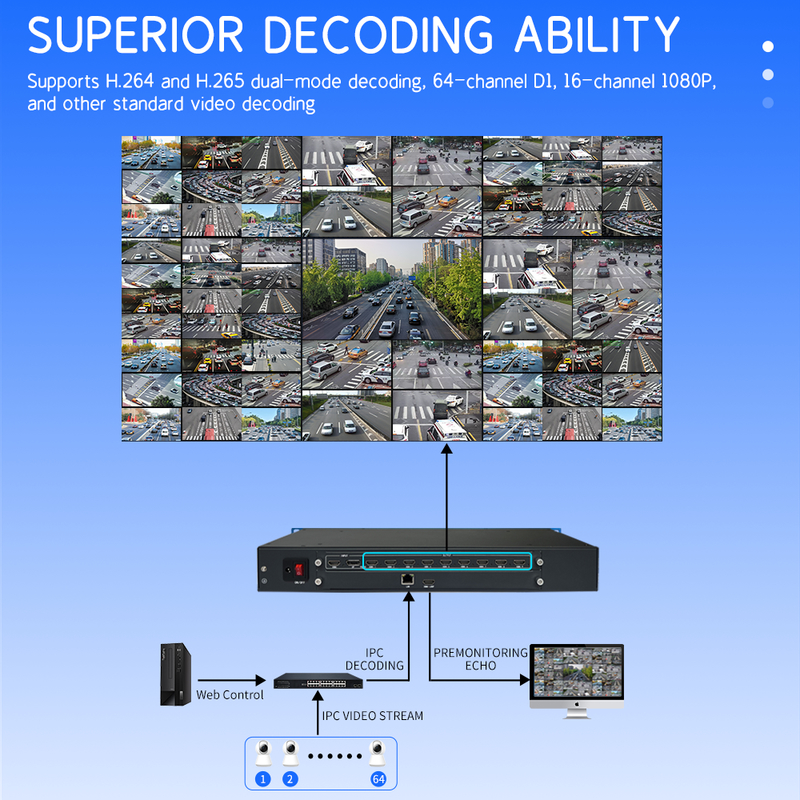

- Supports decoding of 64xD1@30fps H.265/H.264 or 16x1080p@30fps H.265/H.264
- Gigabit Ethernet ports for high-speed connectivity
- Web-based control for easy operation (window roaming, splitting, merging)
- Batch import/export of IPC for rapid device deployment
- Pre-set plan saving and polling for quick display scheme switching
- Subtitle settings and customizable video background color
- Electronic map positioning with IPC video echo
Welcome to contact us to consult about the products required by your project!
Product Specifications
| Product Name | BIT-Dec64-09 |
|---|---|
| Input Port | 1 x Gigabit Ethernet ports |
| Decoding performance | 64xD1@30fps H.265/H.264 decode or 16x1080p@30fps H.265/H.264 decode |
| Output port | 9xHDMI 1.4, 1 xHDMI 1.4 (Loop) |
| Output resolution | 1920x1080p60, 1920x1200p60 |
| Maximum pixel clock frequency of output | 154MHz |
| Color depth | 8bit |
| Control method | Web |
| Power supply voltage | 12V |
| Power consumption | 26W |
| Operating temperature | -10~70°C/0~70°C |
| Product size | 483mm (Length) x 162mm (Width) x 60mm (Height) |
| Package size | 530mm (Length) x 280mm (Width) x 95mm (Height) |
| Product weight | 3KG |
| Packing weight | 4.6KG |
| Accessories list | 1 x 12V 5A power adapter, 1 x CAT5E Ethernet cable |
| After-sales warranty | 3-year warranty |
Features at a Glance
Company Profile
FAQ
Why Choose Bitvisus?
- Own warehouse ensures shipping within 48 hours after payment (weekends/holidays excluded)
- OEM/ODM services available
- Extensive product range including Video Wall controllers, Multiscreen Expanders, Multiviewers, and Embedded Projector Fusion systems
Shipment & Payment
- Payment methods: T/T, Visa, PayPal, Western Union, L/C
- Shipping options: DHL, UPS, EMS, FedEx, Air freight, Sea freight
How to Order?
- Contact us via email or chat (TM, WhatsApp, Skype) with your requirements
- We'll provide a proforma invoice based on your order
- After payment confirmation, we'll ship your order promptly
