4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output

4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output
4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output

Large Image :  4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output

Product Details:
Place of Origin: Guangdong China
Brand Name: Bitvisus
Certification: CE、FCC、GB
Model Number: BIT-MSE-HDBT-4K60-104Pro
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 543$
Packaging Details: 2kg, 36cm*21.5cm*7cm
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 1000
Contact Now

4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output

Description
Product Name: BIT-MSE-HDBT-4K60-104Pro Product Type: 4K60 HDBT Multi-Screen Expander
Feature: HDBaseT Standard Network Port Output Function: Pixel-to-pixel Splicing
Input: HDMI/DP Output: 4 Standard HDBaseT Network Output Ports
Warranty: 3 Years Input Interface: 600MHz
Ouput Interface: 300MHz Input Resolution: 4K60
Highlight:

1 in 4 Projection Fusion Processor

,

4K60 HDBaseTout Projection Fusion Processor

,

4X1 Pixel Mapping Projection Fusion Processor

Product Overview

4K60 HDBaseT Multi-Screen Expander

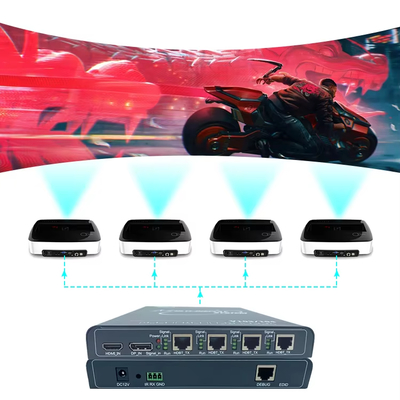

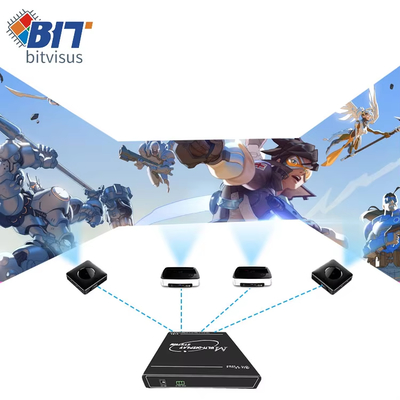

⇒BIT-4k60-HDBT-104Pro is an industrial-grade high-performance product specially developed for the needs of multi-channel projection fusion. It adopts HDMI/DP input interface, HDBaseT standard network port output, and can be used as chassis card/multi-screen treasure;

⇒Ultra-high resolution output supports up to 4x1920x1200@60Hz/1920x1200x4@60Hz resolution, backward compatible with lower resolutions;

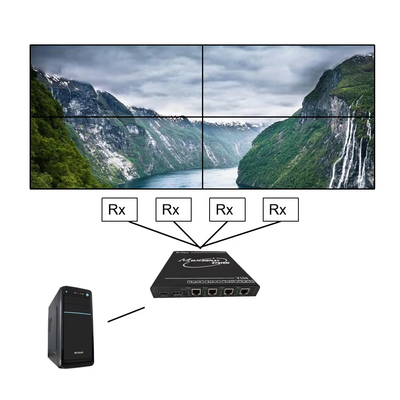

⇒Supports 1xN, Nx1, MxN pixel-to-pixel stitching without stretching or deformation, providing a wider field of view;
⇒Adopting 45nm process high-end programmable FPGA chip and full hardware real-time processing architecture: ultra-fast processing speed without delay;
⇒Supports parallel use to ensure real-time display requirements on a large screen；
⇒Low power consumption, energy saving and environmental protection design, internal conduction and heat dissipation,without any external heat dissipation measures, high reliability.



⇒Welcome to contact us to consult about the products required by your project!

Product Specifications
Product Name BIT-MSE-HDBT-4K60-104Pro
The highest video pixel frequency of the intput interface 600MHz
The highest video pixel frequeneyof the output interfacc 300MHz

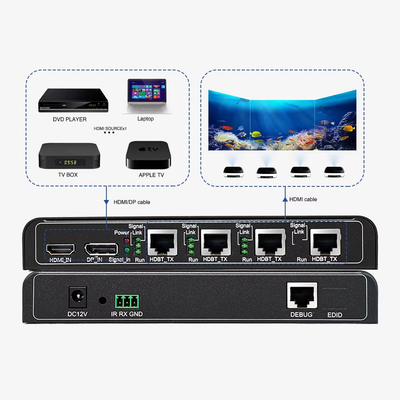

Enter the interface type 1 HDMI2.0 ;1 DP1.2 ;Supports HDCP2.2(Choose one)

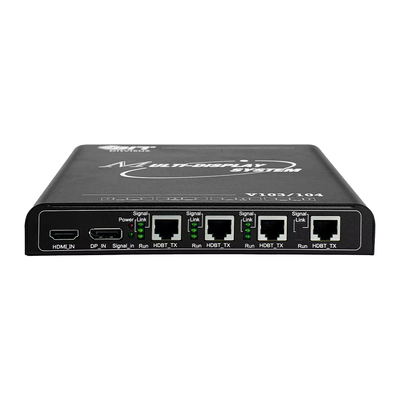

Output interface type 4 standard HDBaseT network output ports
4 screens support typical resolution 4x1920x1200@00Hz; 4x1920x1080@60Hz; 4x1280x800@60Hz; 4x1024x768@60Hz.
Factory default resolution 3840x2160@60Hz
4x1/1x4 Maximum supported resolution 1920x4800@60Hz/7680x1200@60Hz
Input cable length <3 meters
Qutput cable length 70m, 150m optional
Output network cable type Cat5E/Cat6 and above
Product size Length×width×height:185mm×204mm×28mm
Package size Length×width×height:360mm×215mm×70mm
Product weigh 1KG
Packing weight 2KG
After-saleswarranty 3 yearws warranty


Features at a Glance


4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 0

4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 1

4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 2

4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 3

4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 4

4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 5

4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 6

4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 7

4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 8

4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 9

4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 10

Company Profile

4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 11

4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 11

4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 13

4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 14

4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 15

4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output 16


FAQ


Why Choose Bitvisus ?

1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment(weekends and holidays excluded).
2. OEM/ODM offered for our customers.
3.We have various pruduct that may suit for you, such as Video Wall controller, Multiscreen Expander, Multiviewer, Embeded Projector Fusion and so on, which proves that our company has sufficient R&D experience and product quality assurrance.
Shipment & payment
1.T/T, Visa, PayPal, Western Union, L/C available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
How to order?
1. Please send us an email or chat with us via TM, WHATS UP, SKYPE and let us know your requirements for order details.
2. We will provide a proforma invoice to you based on your order requirements.
3. Please check the PI, if everything is OK, we will deliver the goods to you as soon as possible after receiving your payment.
